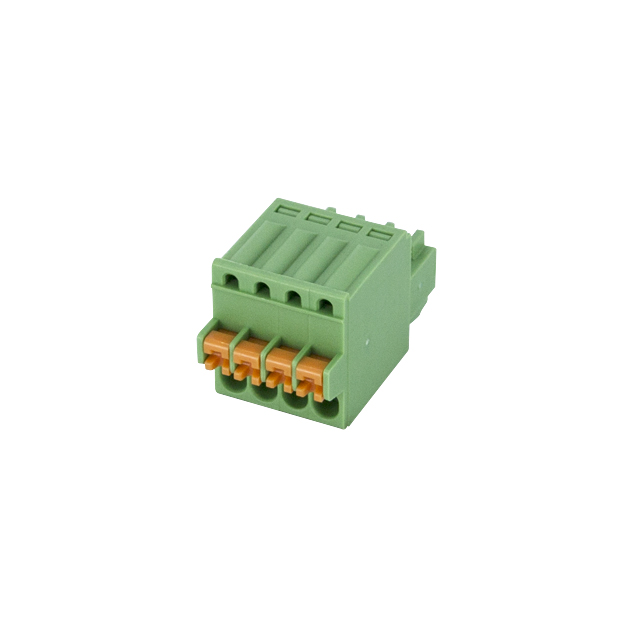

ESC250V-04P

Manufacturer :

DINKLE Corporation USA

Product Category :

Headers, Plugs and Sockets

Manufacturer :

Dinkle Enterprises

HTS Code :

8536.69.40.40

Rated Current :

4 A

Number of Decks :

1

Current - UL :

4 A

Termination Style :

Screwless - Leg Spring, Push-In Spring

Number of Positions :

4

Fastening Method :

SPRING LOADED

Header Orientation :

-

Type :

Plug, Female Sockets

Plug Wire Entry :

180°

Voltage - IEC :

320 V

Safety Approval :

CUL; UL

Features :

-

Operating Temperature :

-40°C ~ 120°C

Wire Cross Section :

0.5 mm2

Terminal and Terminal Block Type :

BARRIER STRIP TERMINAL BLOCK

Pbfree Code :

yes

Color :

Green

Contact Mating Finish :

Tin

Number of Levels :

1

Pitch :

0.098 (2.50mm)

Wire Gauge :

20 AWG

Voltage - UL :

150 V

Wire Gauge or Range - AWG :

20-28 AWG

Mounting Type :

Free Hanging (In-Line)

ECCN Code :

EAR99

Reach Compliance Code :

Compliant

Number of Ways :

4

Rated Voltage :

150 V

Number of Rows :

1

Product Status :

Active

Wire Gauge or Range - mm² :

0.2-0.5mm²

Positions Per Level :

4

Current - IEC :

4A
