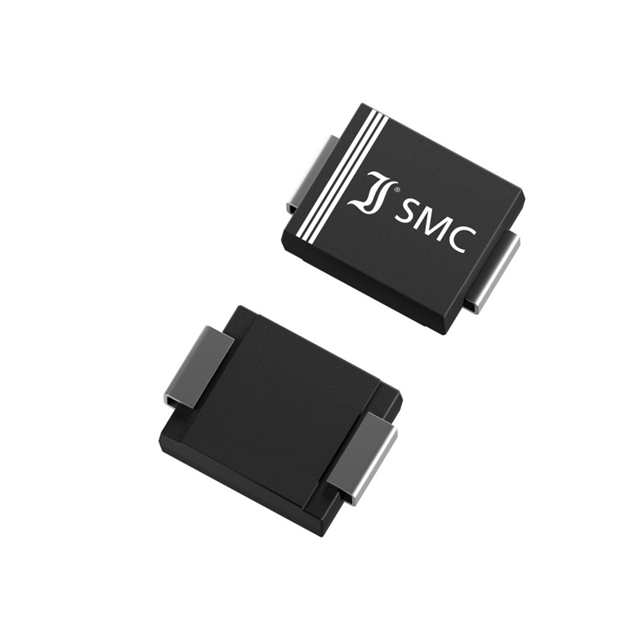

ES3C
Or copy the link below:
- Mfr.Part #
- ES3C
- Manufacturer
- Diotec Semiconductor
- Package / Case
- DO-214AB, SMC
- Datasheet
- Download
- Description
- SF Rect, 150V, 3.00A, 20ns
- Stock
- 430
- In Stock ：
- 430
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Diotec Semiconductor
- Product Category :
- Diodes - Rectifiers - Single
- Reverse Voltage :
- 150V
- Min Operating Temperature :
- -50°C
- Current - Average Rectified (Io) :
- 3A
- Polarity :
- Standard
- Weight :
- 300mg
- Capacitance :
- 45pF
- Mounting Type :
- Surface Mount
- Voltage - Rated DC :
- 150V
- Factory Lead Time :
- 10 Weeks
- Speed :
- Fast Recovery =< 500ns, > 200mA (Io)
- Max Repetitive Reverse Voltage (Vrrm) :
- 150V
- Element Configuration :
- Single
- Average Rectified Current :
- 3A
- Operating Temperature - Junction :
- -50°C~150°C
- Max Forward Surge Current (Ifsm) :
- 100A
- Packaging :
- Tape and Reel (TR)
- Current - Reverse Leakage @ Vr :
- 10μA @ 150V
- Forward Current :
- 3A
- Number of Pins :
- 2
- Supplier Device Package :
- SMC (DO-214AB)
- Voltage - Forward (Vf) (Max) @ If :
- 950mV @ 3A
- Package / Case :
- DO-214AB, SMC
- Lead Free :
- Lead Free
- Output Current :
- 3A
- Peak Non-Repetitive Surge Current :
- 100A
- Max Surge Current :
- 100A
- Forward Voltage :
- 950mV
- Max Reverse Voltage (DC) :
- 150V
- Recovery Time :
- 20 ns
- Radiation Hardening :
- No
- Peak Reverse Current :
- 10μA
- Voltage - DC Reverse (Vr) (Max) :
- 150V
- Current Rating :
- 3A
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- REACH SVHC :
- No SVHC
- Base Part Number :
- ES3C
- Diode Type :
- Standard
- RoHS Status :
- ROHS3 Compliant
- Reverse Recovery Time :
- 20 ns
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Capacitance @ Vr, F :
- 45pF @ 4V 1MHz
- Mount :
- Surface Mount
- Power Dissipation :
- 1.66W
- Max Operating Temperature :
- 150°C
- Datasheets
- ES3C
Standard Diode Rectifier Fast Recovery =< 500ns, > 200mA (Io) 950mV @ 3A -50°C~150°C 10μA @ 150V Tape & Reel (TR) DO-214AB, SMC Surface Mount
ES3C Overview
The reverse voltage should be 150V.In this device, there is an average rectified current of 3A volts.An unwanted consequence of the primary action of this electronic or electrical device is the production of 1.66W heat.Forward current may not exceed 3A.3A is its maximum current rating, which is the maximum current that a fuse can handle without deteriorating.This is the maximum amount of 100A surge current that can be used.Depending on the capacitance, the device may deliver a value of 45pF.As the data chart indicates, the peak reverse is 10μA.
ES3C Features
an average rectified current of 3A volts
a current rating of 3A
the peak reverse is 10μA
ES3C Applications
There are a lot of ON Semiconductor
ES3C applications of single-phase diode rectifier.
- DC motor control and drives
- Battery chargers
- Welders
- Power converters
- Reverse Polarity Protection
- Ultra High-Speed Switching
- Freewheeling
- Polarity Protection Diode
- Recirculating Diode
- Switching Diode
