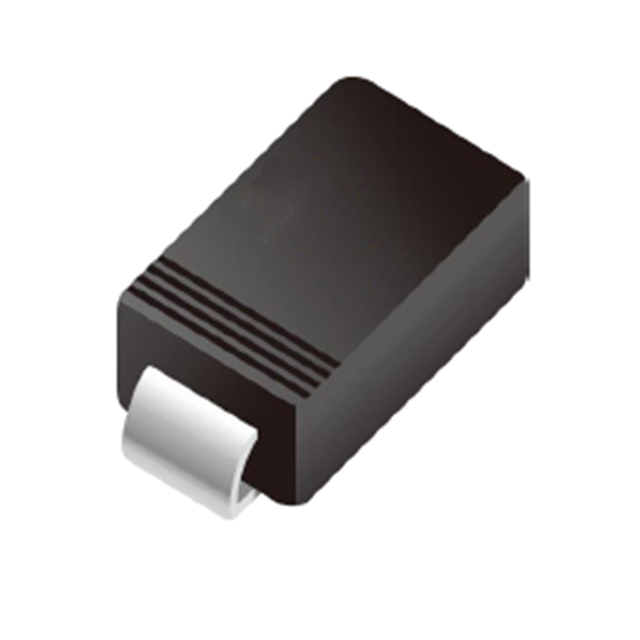

ES2G

Manufacturer :

MDD

Product Category :

Diodes - Rectifiers - Single

Terminal Finish :

TIN LEAD

JESD-30 Code :

R-PDSO-C2

Configuration :

Single

Diode Type :

Standard

Capacitance :

15pF

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Qualification Status :

Not Qualified

Mounting Type :

Surface Mount

JESD-609 Code :

e0

Voltage - Forward (Vf) (Max) @ If :

1.1V @ 2A

Package / Case :

DO-214AA, SMB

Mount :

Surface Mount

Diode Element Material :

SILICON

Non-rep Pk Forward Current-Max :

50A

Number of Elements :

1

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Base Part Number :

ES2G

Number of Phases :

1

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

RoHS Status :

Non-RoHS Compliant

Application :

EFFICIENCY

Current - Reverse Leakage @ Vr :

10μA @ 400V

HTS Code :

8541.10.00.80

Operating Temperature - Junction :

-50°C~150°C

Lead Free :

Contains Lead

Terminal Form :

C BEND

Average Rectified Current :

2A

ECCN Code :

EAR99

Voltage - Rated DC :

400V

Packaging :

Tape and Reel (TR)

Factory Lead Time :

15 Weeks

Current Rating :

2A

Terminal Position :

Dual

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Capacitance @ Vr, F :

15pF @ 4V 1MHz

Reverse Recovery Time :

50 ns

Number of Terminations :

2

Max Reverse Voltage (DC) :

400V

Output Current :

2A

Reach Compliance Code :

Unknown
