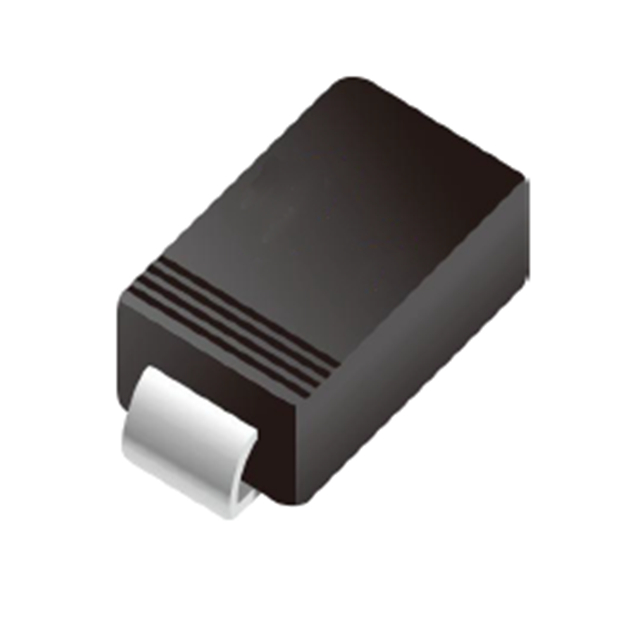

ES1G

Manufacturer :

MDD

Product Category :

Diodes - Rectifiers - Single

Min Operating Temperature :

-55°C

Lead Free :

Lead Free

Reverse Recovery Time :

35 ns

Diode Type :

Standard

Factory Lead Time :

10 Weeks

Voltage - DC Reverse (Vr) (Max) :

400V

Operating Temperature - Junction :

150°C Max

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Peak Non-Repetitive Surge Current :

30A

Max Reverse Voltage (DC) :

400V

Voltage - Forward (Vf) (Max) @ If :

1.3V @ 1A

Max Repetitive Reverse Voltage (Vrrm) :

400V

Forward Voltage :

1.3V

Length :

4.6mm

Reverse Voltage :

400V

Published :

2006

Current - Average Rectified (Io) :

1A

Max Operating Temperature :

150°C

Base Part Number :

ES1G

Element Configuration :

Single

Max Forward Surge Current (Ifsm) :

30A

Height :

2.5mm

Packaging :

Tape and Reel (TR)

RoHS Status :

ROHS3 Compliant

Weight :

106mg

Max Junction Temperature (Tj) :

150°C

Width :

2.896mm

Capacitance :

10pF

Forward Current :

1A

Current - Reverse Leakage @ Vr :

5µA @ 400V

Package / Case :

DO-214AC, SMA

Radiation Hardening :

No

Average Rectified Current :

1A

Termination :

SMD/SMT

Recovery Time :

35 ns

Mount :

Surface Mount

Mounting Type :

Surface Mount

Number of Pins :

2

Capacitance @ Vr, F :

10pF @ 4V 1MHz

Max Surge Current :

30A

Supplier Device Package :

SMA (DO-214AC)

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Contact Plating :

Tin

REACH SVHC :

No SVHC

Peak Reverse Current :

5μA
