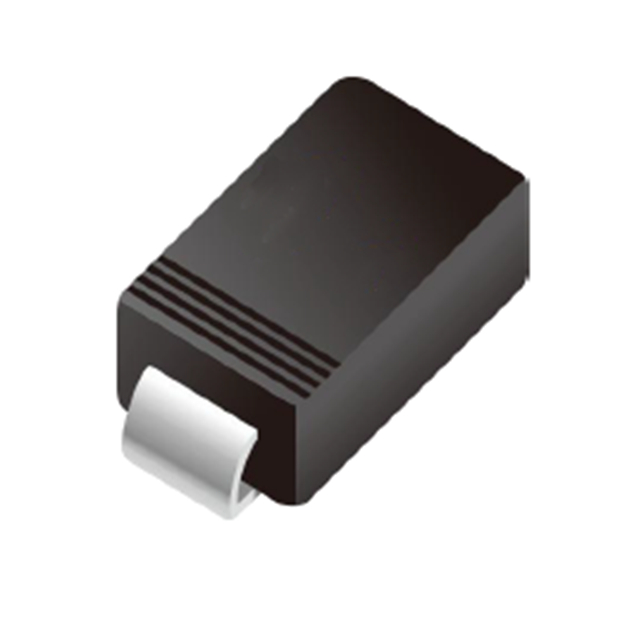

ES1D

Manufacturer :

MDD

Product Category :

Diodes - Rectifiers - Single

Published :

2001

Radiation Hardening :

No

Height :

2.5mm

Reverse Voltage :

200V

RoHS Status :

ROHS3 Compliant

Max Surge Current :

30A

Current - Average Rectified (Io) :

1A

Diode Type :

Standard

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Supplier Device Package :

SMA (DO-214AC)

Max Forward Surge Current (Ifsm) :

30A

Output Current :

1A

Recovery Time :

15 ns

Voltage :

200V

Length :

4.75mm

Average Rectified Current :

1A

Max Reverse Voltage (DC) :

200V

Lead Free :

Lead Free

Current :

1A

Element Configuration :

Single

Factory Lead Time :

10 Weeks

Operating Temperature - Junction :

-55°C~150°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Reverse Recovery Time :

15 ns

Package / Case :

DO-214AC, SMA

Max Junction Temperature (Tj) :

150°C

Forward Current :

1A

Capacitance @ Vr, F :

7pF @ 4V 1MHz

Mount :

Surface Mount

Forward Voltage :

920mV

Capacitance :

7pF

Max Operating Temperature :

150°C

Voltage - DC Reverse (Vr) (Max) :

200V

Polarity :

Standard

REACH SVHC :

No SVHC

Current Rating :

1A

Voltage - Rated DC :

200V

Voltage - Forward (Vf) (Max) @ If :

920mV @ 1A

Base Part Number :

ES1D

Min Operating Temperature :

-50°C

Peak Non-Repetitive Surge Current :

30A

Number of Pins :

2

Max Repetitive Reverse Voltage (Vrrm) :

200V

Mounting Type :

Surface Mount

Current - Reverse Leakage @ Vr :

5µA @ 200V

Width :

2.95mm

Peak Reverse Current :

5μA

Contact Plating :

Tin

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Packaging :

Tape and Reel (TR)

Power Dissipation :

1.47W
