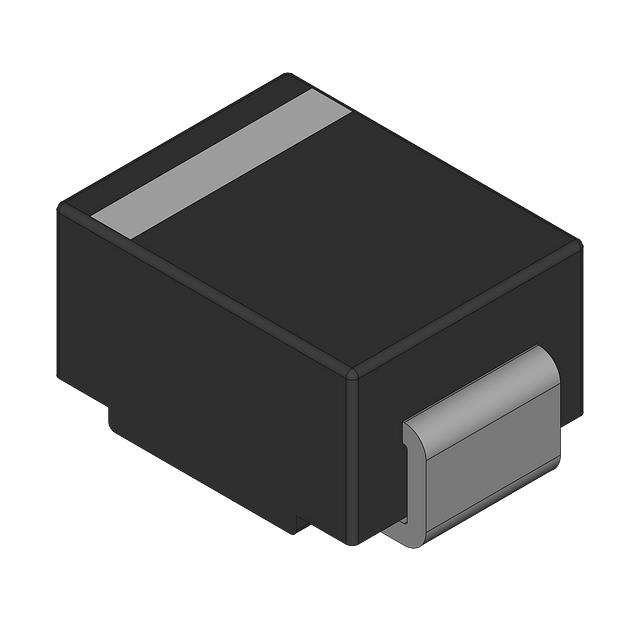

ES1B

Manufacturer :

Fairchild Semiconductor

Product Category :

Diodes - Rectifiers - Single

Packaging :

Tape and Reel (TR)

Element Configuration :

Single

Length :

4.6mm

Current :

1A

Max Forward Surge Current (Ifsm) :

30A

Min Operating Temperature :

-50°C

Polarity :

Standard

Voltage :

100V

Voltage - DC Reverse (Vr) (Max) :

100V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Max Operating Temperature :

150°C

Capacitance :

7pF

Recovery Time :

15 ns

Width :

2.896mm

Current Rating :

1A

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Max Repetitive Reverse Voltage (Vrrm) :

100V

Mounting Type :

Surface Mount

Forward Current :

1A

Factory Lead Time :

10 Weeks

Forward Voltage :

920mV

Max Junction Temperature (Tj) :

150°C

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Base Part Number :

ES1B

Average Rectified Current :

1A

Voltage - Forward (Vf) (Max) @ If :

920mV @ 1A

Package / Case :

DO-214AC, SMA

Output Current :

1A

Radiation Hardening :

No

RoHS Status :

ROHS3 Compliant

Current - Reverse Leakage @ Vr :

5µA @ 100V

Power Dissipation :

1.47W

Peak Reverse Current :

5μA

Max Surge Current :

30A

Operating Temperature - Junction :

-55°C~150°C

Peak Non-Repetitive Surge Current :

30A

Max Reverse Voltage (DC) :

100V

Supplier Device Package :

SMA (DO-214AC)

Voltage - Rated DC :

100V

Current - Average Rectified (Io) :

1A

Height :

2.5mm

Contact Plating :

Tin

Mount :

Surface Mount

Lead Free :

Lead Free

Reverse Recovery Time :

15 ns

Diode Type :

Standard

Number of Pins :

2

Capacitance @ Vr, F :

7pF @ 4V 1MHz

Published :

2001

REACH SVHC :

No SVHC

Reverse Voltage :

100V
