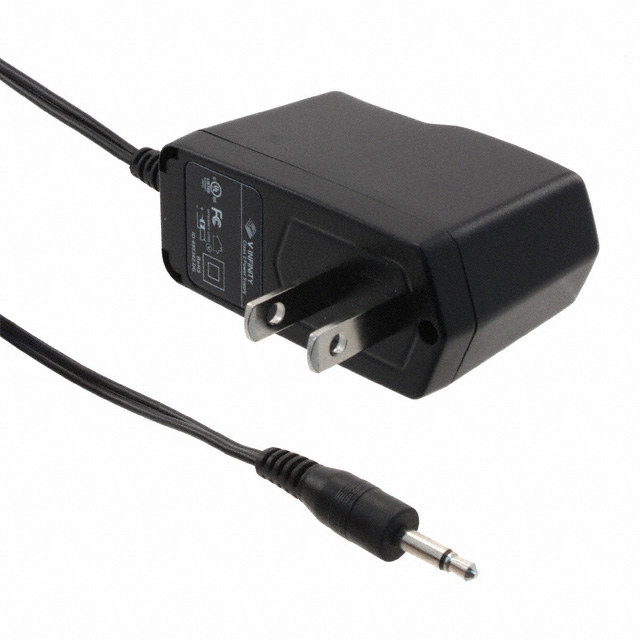

EPS120050-P1P
Or copy the link below:
- Mfr.Part #
- EPS120050-P1P
- Manufacturer
- Bel
- Package / Case
- Datasheet
- Download
- Description
- AC/DC WALL MOUNT ADAPTER 12V 6W
- Stock
- 5,724
- In Stock ：
- 5,724
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Bel
- Product Category :
- RoHS Status :
- RoHS Compliant
- Polarization :
- Positive Tip, Negative Sleeve
- Power (Watts) :
- 6W
- Applications :
- ITE (Commercial)
- Output Power :
- 6W
- Input Connector :
- NEMA 1-15P
- Max Output Current :
- 500mA
- Height :
- 41.91mm
- Efficiency :
- Level V
- Weight :
- 92g
- Max Power Dissipation :
- 6W
- Region Utilized :
- North America
- Published :
- 2006
- Output Current :
- 500mA
- No Load Power Consumption :
- 300mW Max
- Max Operating Temperature :
- 40°C
- Voltage - Input :
- 100V~132VAC
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Lead Free :
- Lead Free
- Number of Outputs :
- 1
- Connector Type :
- PLUG
- Min Operating Temperature :
- 0°C
- Current - Output (Max) :
- 500mA
- Voltage - Output :
- 12V
- Output Connector :
- Phono Plug, 3.5mm O.D. x 14.0mm
- Length :
- 62.23mm
- Series :
- EPS (6W)
- Cord Length :
- 72 1.83m
- Approval Agency :
- cULus
- Input Type :
- Fixed Blade
- Polarity :
- Negative, Positive
- Operating Temperature :
- 0°C~40°C
- Width :
- 26.924mm
- Form :
- Wall Mount (Class II)
- Mount :
- Wall
- Size / Dimension :
- 2.45Lx1.06W x 1.65 H 62.3mmx26.8mmx42.0mm
- Datasheets
- EPS120050-P1P
EPS120050-P1P Documents
EPS120050-P1P datasheet pdf and AC DC Desktop, Wall Adapters product details from CUI Inc. stock available at
EPS120050-P1P Description
EPS120050-P1P developed by CUI Inc. is a type of AC adapter used to convert the voltage of the external AC power to the rated voltage required by the IT equipment to meet the power requirements of the equipment. When using an AC adapter, you should know the input voltage range of the power adapter, preferably a universal AC100-240V voltage input.
EPS120050-P1P Features
Up to 6 W power
Compact size
Single output from 3~24 V
Over voltage and short circuit protections
Custom designs available
EPS120050-P1P Applications
Lead-acid batteries
Electric toys
Humidifiers
Air purifiers
