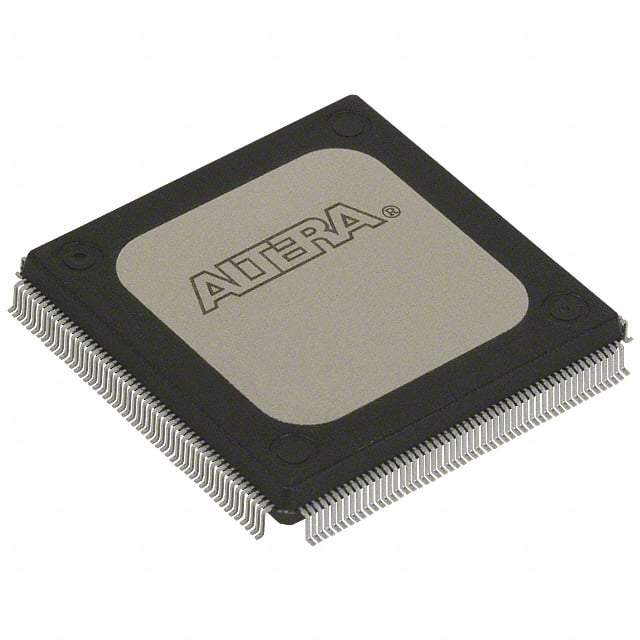

EPF10K20RC208-3

Manufacturer :

Altera (Intel)

Product Category :

FPGAs (Field Programmable Gate Array)

Clock Frequency :

71.43MHz

Series :

FLEX-10K®

Packaging :

Tray

Width :

28mm

Voltage - Supply :

4.75V~5.25V

Propagation Delay :

0.5 ns

Number of Terminations :

208

Surface Mount :

yes

Base Part Number :

EPF10K20

Supply Voltage :

5V

Terminal Finish :

Tin/Lead (Sn/Pb)

Number of Inputs :

147

Number of Outputs :

147

Mounting Type :

Surface Mount

JESD-30 Code :

S-PQFP-G208

ECCN Code :

EAR99

Operating Temperature :

0°C~70°C TA

Terminal Pitch :

0.5mm

RoHS Status :

Non-RoHS Compliant

Number of Dedicated Inputs :

4

Package / Case :

208-BFQFP Exposed Pad

Peak Reflow Temperature (Cel) :

220

Programmable Logic Type :

LOADABLE PLD

Total RAM Bits :

12288

Number of LABs/CLBs :

144

Power Supplies :

3.3/55V

Output Function :

REGISTERED

Time@Peak Reflow Temperature-Max (s) :

30

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Terminal Form :

Gull wing

HTS Code :

8542.39.00.01

Height Seated (Max) :

4.1mm

Number of I/O :

147

Terminal Position :

QUAD

Number of Logic Elements/Cells :

1152

JESD-609 Code :

e0

Number of Gates :

63000

Qualification Status :

Not Qualified

Length :

28mm
