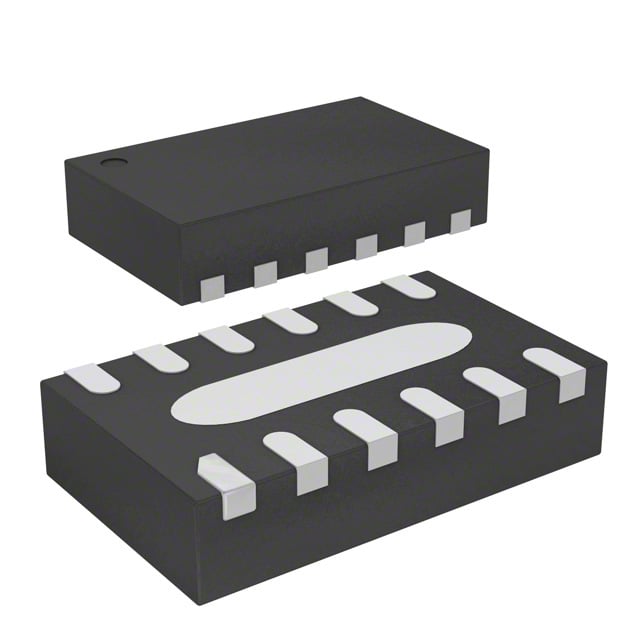

EMIF06-1502M12
Or copy the link below:
- Mfr.Part #
- EMIF06-1502M12
- Manufacturer
- STMicroelectronics
- Package / Case
- 12-UFDFN Exposed Pad
- Datasheet
- Download
- Description
- FILTER RC(PI) 170 OHM/14PF SMD
- Stock
- 29,130
- In Stock ：
- 29,130
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- STMicroelectronics
- Product Category :
- EMI/RFI Filters (LC, RC Networks)
- Termination :
- Flat
- Series :
- IPAD™
- Applications :
- Data Lines for Mobile Devices
- Number of Terminations :
- 12
- Packaging :
- Tape and Reel (TR)
- Package / Case :
- 12-UFDFN Exposed Pad
- Size / Dimension :
- 0.098Lx0.059W 2.50mmx1.50mm
- Type :
- Low Pass
- Filter Order :
- 2nd
- Packing Method :
- Tape and Reel
- Depth :
- 1.5mm
- Mount :
- Surface Mount
- Mounting Type :
- Surface Mount
- RoHS Status :
- ROHS3 Compliant
- Length :
- 2.5mm
- Operating Temperature :
- -40°C~85°C
- Resistance - Channel (Ω) :
- 170
- HTS Code :
- 8504.50.80.00
- ESD Protection :
- yes
- ECCN Code :
- EAR99
- Radiation Hardening :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Height :
- 0.024 0.60mm
- DC Resistance (DCR) (Max) :
- 187Ohm
- Number of Functions :
- 6
- Values :
- R = 170 Ω, C = 14pF (Total)
- Number of Channels :
- 6
- Base Part Number :
- EMIF06
- Approval Agency :
- IEC
- Datasheets
- EMIF06-1502M12
EMIF06-1502M12 Documents
EMIF06-1502M12 datasheet pdf and EMI/RFI Filters (LC, RC Networks) product details from STMicroelectronics stock available at
