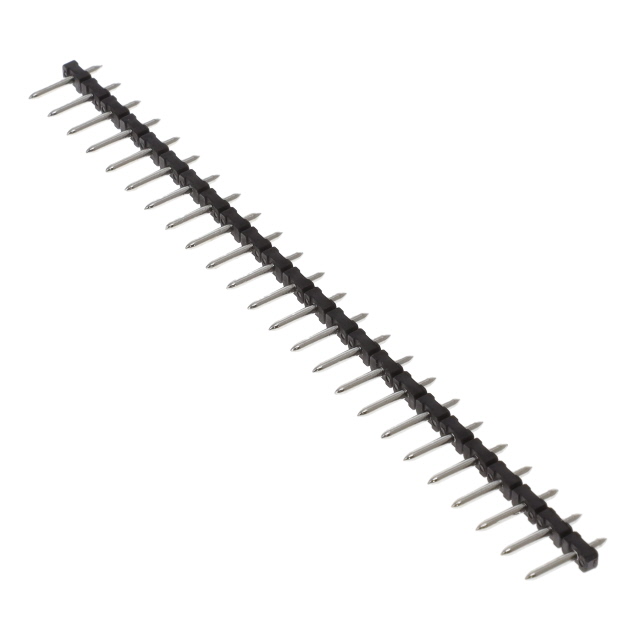

EM502524
Or copy the link below:
- Mfr.Part #
- EM502524
- Manufacturer
- Eaton-Electronics Division
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 24POS VERT 5MM
- Stock
- 484
- In Stock ：
- 484
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Eaton-Electronics Division
- Product Category :
- Headers, Plugs and Sockets
- Current - UL :
- 15A
- Insulation Height :
- 0.079 2.00mm
- Published :
- 2009
- Contact Tail Length :
- 0.177 4.50mm
- Number of Contacts :
- 24
- Housing Material :
- Thermoplastic
- Number of Levels :
- 1
- Termination :
- Solder
- Packaging :
- Bulk
- Contact Material :
- Brass
- Series :
- Euro-Mag EM5025
- Voltage :
- 300V
- Pitch :
- 0.197 5.00mm
- Max Operating Temperature :
- 120°C
- Weight :
- 4.535924g
- Contact Mating Finish :
- Tin
- Mount :
- Through Hole
- Mounting Type :
- Through Hole
- Material Flammability Rating :
- UL94 V-0
- Lead Free :
- Lead Free
- Voltage - Rated :
- 300V
- Contact Plating :
- Tin
- Min Operating Temperature :
- -40°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Operating Temperature :
- -40°C~120°C
- Number of Positions :
- 24
- Flammability Rating :
- UL94 V-0
- Current :
- 15A
- Termination Style :
- Solder
- Positions Per Level :
- 24
- Header Orientation :
- Vertical
- Factory Lead Time :
- 15 Weeks
- Type :
- Header, Male Pins, Unshrouded
- Orientation :
- Vertical
- Color :
- Black
- Voltage - UL :
- 300V
- RoHS Status :
- RoHS Compliant
- Number of Positions Per Level :
- 24
- Datasheets
- EM502524
EM502524 Documents
Bulk 0.197 5.00mm Black 1 Levels Through Hole Header, Male Pins, Unshrouded Euro-Mag EM5025 Thermoplastic Tin Brass
EM502524 Overview
There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Product number Euro-Mag EM5025 belongs to the Euro-Mag EM5025 Series.Whenever the temperature is below 120°C, it's best.There is a minimum temperature requirement of [0°C] for this device.There is a Through Hole mount on the part.This device operates at a temperature of -40°C~120°C.There are a lot of similarities between this part and other Header, Male Pins, Unshrouded products.
EM502524 Features
Euro-Mag EM5025 series
EM502524 Applications
There are a lot of Eaton - Electronics Division
EM502524 Terminal Blocks applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
