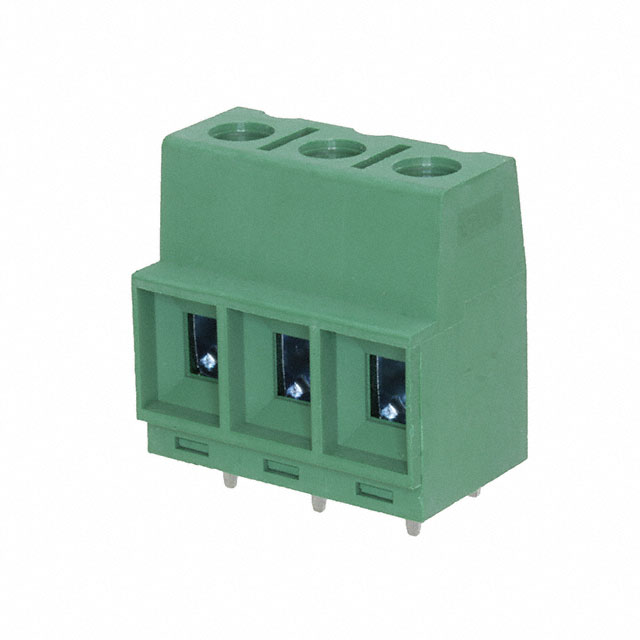

EM292903-UL
Or copy the link below:
- Mfr.Part #
- EM292903-UL
- Manufacturer
- Eaton-Electronics Division
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 3P SIDE ENT 10.16MM PCB
- Stock
- 15
- In Stock ：
- 15
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Eaton-Electronics Division
- Product Category :
- Wire to Board
- Housing Material :
- Thermoplastic
- Lead Free :
- Lead Free
- Number of Positions Per Level :
- 3
- Plating :
- Chromate, Steel
- Termination :
- Screw
- Contact Material - Plating :
- Copper - Tin Plated
- Wire Termination :
- Screw - Rising Cage Clamp
- Voltage :
- 300V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Positions Per Level :
- 3
- RoHS Status :
- Non-RoHS Compliant
- Mounting Type :
- Through Hole
- Wire Gauge :
- 6-20 AWG
- Pitch :
- 0.400 10.16mm
- Torque - Screw :
- 1.69 Nm (15 Lb-In)
- Factory Lead Time :
- 15 Weeks
- Screw Material - Plating :
- Steel, Stainless
- Packaging :
- Bulk
- Screw Thread :
- M4
- Series :
- Euro-Mag EM2929
- Min Operating Temperature :
- -40°C
- Max Operating Temperature :
- 105°C
- Clamp Material - Plating :
- Steel - Tri-Chromate Plated
- Number of Levels :
- 1
- Contact Plating :
- Copper, Tin
- Wire Gauge (Min) :
- 6 AWG
- Mount :
- Through Hole
- Published :
- 2016
- Operating Temperature :
- -40°C~105°C
- Current :
- 65A
- Wire Gauge (Max) :
- 20 AWG
- Mating Orientation :
- Horizontal with Board
- Datasheets
- EM292903-UL
0.400 10.16mm Bulk Thermoplastic Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 6-20 AWG Euro-Mag EM2929
EM292903-UL Overview
The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the Euro-Mag EM2929 Series of products.It's best to use it when the temperature is below 105°C.This device must operate at a minimum temperature of -40°C.The part is mounted by Through Hole.The device runs in -40°C~105°C Operating Temperature.
EM292903-UL Features
Euro-Mag EM2929 series
EM292903-UL Applications
There are a lot of Eaton - Electronics Division
EM292903-UL Terminal Blocks applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
