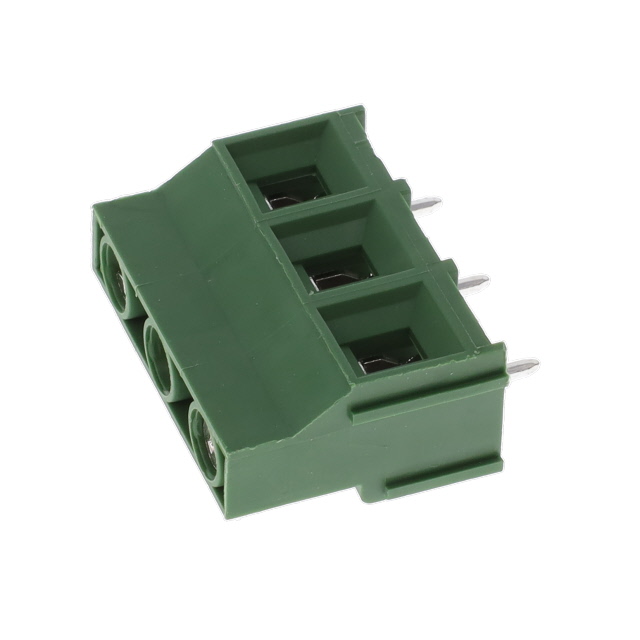

EM291903
Or copy the link below:
- Mfr.Part #
- EM291903
- Manufacturer
- Eaton-Electronics Division
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 3P SIDE ENT 9.53MM PCB
- Stock
- 68
- In Stock ：
- 68
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Eaton-Electronics Division
- Product Category :
- Wire to Board
- Termination :
- Solder
- Feature :
- Interlocking (Side)
- Torque - Screw :
- 0.62 Nm (5.5 Lb-In)
- Clamp Material - Plating :
- Steel - Nickel Plated
- Contact Material :
- Brass
- Wire Termination :
- Screw - Rising Cage Clamp
- Weight :
- 8.164663g
- RoHS Status :
- RoHS Compliant
- Published :
- 2017
- Current Rating :
- 30A
- Series :
- Euro-Mag EM2919
- Plating :
- Steel
- Operating Temperature :
- -40°C~105°C
- Number of Levels :
- 1
- Wire Gauge :
- 10-20 AWG
- Factory Lead Time :
- 10 Weeks
- Screw Material - Plating :
- Steel - Nickel Plated
- Wire Gauge (Min) :
- 10 AWG
- Current :
- 30A
- Orientation :
- Straight
- Screw Thread :
- M3
- Housing Material :
- Thermoplastic
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Through Hole
- Contact Material - Plating :
- Brass - Tin Plated
- Number of Positions :
- 3
- Positions Per Level :
- 3
- Min Operating Temperature :
- -40°C
- Voltage :
- 600V
- Pitch :
- 0.375 9.53mm
- Wire Gauge (Max) :
- 20 AWG
- Flammability Rating :
- UL94 V-0
- Mount :
- Through Hole
- Packaging :
- Bulk
- Mating Orientation :
- Horizontal with Board
- Voltage - Rated :
- 300V
- Contact Plating :
- Brass, Tin
- Max Operating Temperature :
- 105°C
- Number of Positions Per Level :
- 3
- Datasheets
- EM291903
EM291903 Documents
0.375 9.53mm Bulk Thermoplastic Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 10-20 AWG Euro-Mag EM2919
EM291903 Overview
This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the Euro-Mag EM2919 Series.If the temperature is below 105°C, it's best to use it.-40°C is the minimum temperature for this device.Several benefits come from the Interlocking (Side) feature.There is a mounting hole at Through Hole.Devices operate at -40°C~105°C operating temperatures.
EM291903 Features
Euro-Mag EM2919 series
EM291903 Applications
There are a lot of Eaton - Electronics Division
EM291903 Terminal Blocks applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
