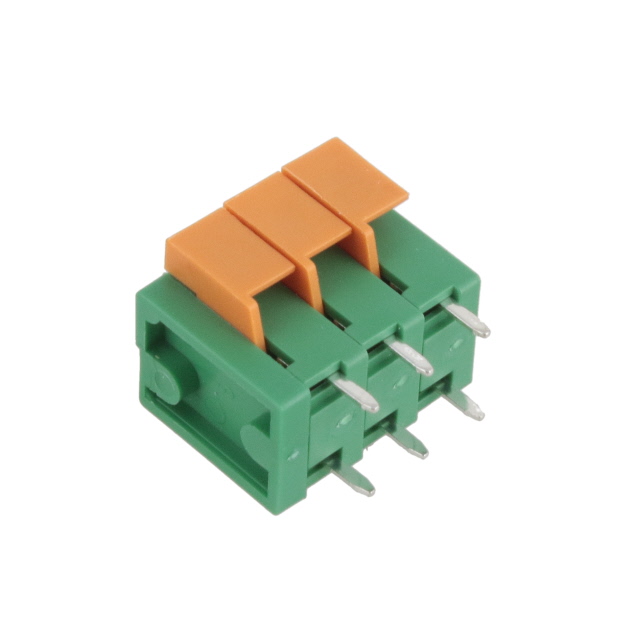

EM279503H
Or copy the link below:
- Mfr.Part #
- EM279503H
- Manufacturer
- Eaton-Electronics Division
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 3POS TOP ENT 5.08MM PCB
- Stock
- 70
- In Stock ：
- 70
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Eaton-Electronics Division
- Product Category :
- Wire to Board
- Orientation :
- RIGHT ANGLE
- Mating Orientation :
- Vertical with Board
- Factory Lead Time :
- 10 Weeks
- Max Operating Temperature :
- 105°C
- Wire Gauge (Max) :
- 24 AWG
- Current Rating :
- 10A
- Mount :
- Through Hole
- Wire Gauge :
- 14-24 AWG
- Number of Contacts :
- 3
- RoHS Status :
- RoHS Compliant
- Operating Temperature :
- -40°C~105°C
- Number of Positions :
- 3
- Voltage :
- 300V
- Contact Material :
- Brass
- Min Operating Temperature :
- -40°C
- Positions Per Level :
- 3
- Contact Material - Plating :
- Brass - Tin Plated
- Number of Positions Per Level :
- 3
- Housing Material :
- Thermoplastic
- Wire Gauge (Min) :
- 14 AWG
- Published :
- 2005
- Lead Free :
- Lead Free
- Mounting Type :
- Through Hole
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Termination :
- Solder
- Max Current Rating :
- 10A
- Number of Levels :
- 1
- Pitch :
- 0.200 5.08mm
- Contact Plating :
- Brass, Tin
- Flammability Rating :
- UL94 V-0
- Current :
- 10A
- Voltage - Rated :
- 300V
- Number of Circuits :
- 3
- Number of Poles :
- 3
- Packaging :
- Bulk
- Weight :
- 3.175147g
- Series :
- Euro-Mag EM2795
- Wire Termination :
- Screwless - Push Button Clamp
- Datasheets
- EM279503H
0.200 5.08mm Bulk Thermoplastic Through Hole Vertical with Board Screwless - Push Button Clamp 1 Levels 14-24 AWG Euro-Mag EM2795
EM279503H Overview
Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the Euro-Mag EM2795 Series, it can be found in this category.Temperatures below 105°C are best for using it.There's a minimum temperature of -40°C for this device.In this case, Through Hole mounts the part.Circuits number 3 in the part.The device is operating at -40°C~105°C Operating Temperature.
EM279503H Features
Euro-Mag EM2795 series
EM279503H Applications
There are a lot of Eaton - Electronics Division
EM279503H Terminal Blocks applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
