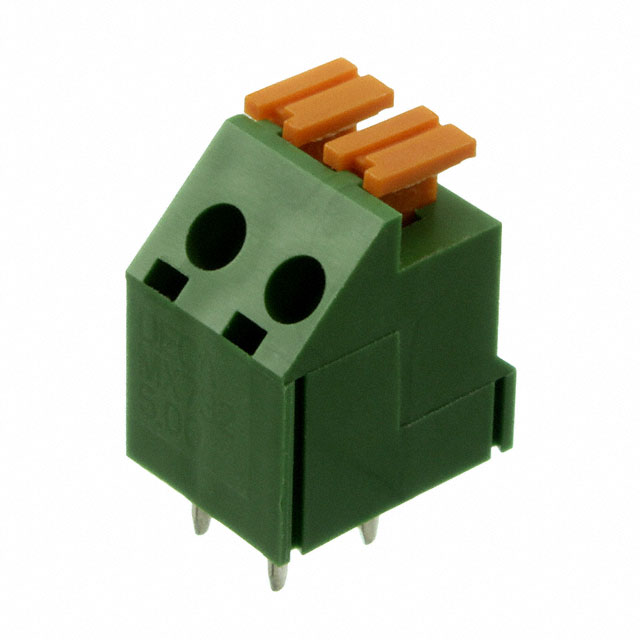

EM278502
Or copy the link below:
- Mfr.Part #
- EM278502
- Manufacturer
- Eaton-Electronics Division
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK 2POS 45DEG 5MM PCB
- Stock
- 34,912
- In Stock ：
- 34,912
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Eaton-Electronics Division
- Product Category :
- Wire to Board
- Number of Levels :
- 1
- RoHS Status :
- RoHS Compliant
- Wire Gauge :
- 16-22 AWG
- Wire Termination :
- Screwless - Push Button Clamp
- Packaging :
- Bulk
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Through Hole
- Factory Lead Time :
- 15 Weeks
- Voltage :
- 300V
- Mating Orientation :
- 45° (135°) Angle with Board
- Series :
- Euro-Mag EM2785
- Operating Temperature :
- -40°C~105°C
- Housing Material :
- Thermoplastic
- Published :
- 2008
- Pitch :
- 0.197 5.00mm
- Feature :
- Interlocking (Side)
- Current :
- 7A
- Contact Material - Plating :
- Brass - Tin Plated
- Positions Per Level :
- 2
- Clamp Material - Plating :
- Steel, Stainless
- Datasheets
- EM278502
0.197 5.00mm Bulk Thermoplastic Through Hole 45° (135°) Angle with Board Screwless - Push Button Clamp 1 Levels 16-22 AWG Euro-Mag EM2785
EM278502 Overview
This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the Euro-Mag EM2785 Series.There are a number of advantages to its Interlocking (Side) feature.As a result, the device runs at -40°C~105°C Operating Temperature.
EM278502 Features
Euro-Mag EM2785 series
EM278502 Applications
There are a lot of Eaton - Electronics Division
EM278502 Terminal Blocks applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
