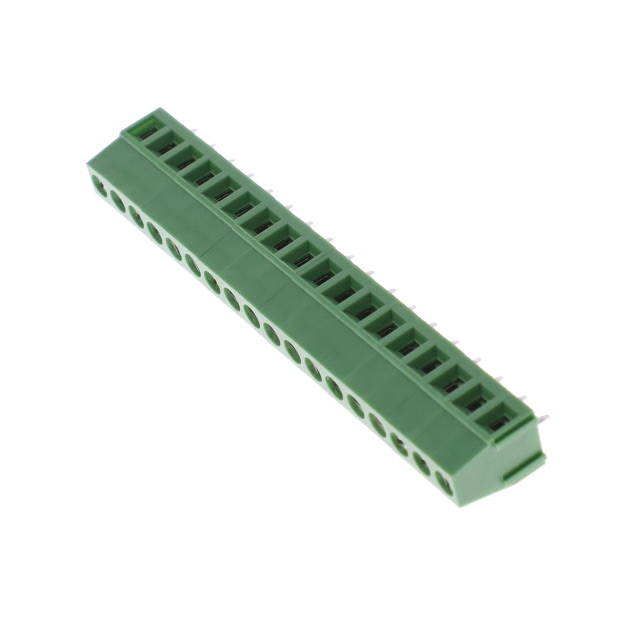

EM258518V
Or copy the link below:
- Mfr.Part #
- EM258518V
- Manufacturer
- Eaton-Electronics Division
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 18P SIDE ENTRY 5MM PCB
- Stock
- 100
- In Stock ：
- 100
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Eaton-Electronics Division
- Product Category :
- Wire to Board
- Mating Orientation :
- Horizontal with Board
- RoHS Status :
- Non-RoHS Compliant
- Voltage - Rated :
- 300V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Max Operating Temperature :
- 105°C
- Flammability Rating :
- UL94 V-0
- Screw Material - Plating :
- Steel - Zinc Plated
- Feature :
- Interlocking (Side)
- Screw Thread :
- M3
- Pitch :
- 0.197 5.00mm
- Current :
- 16A
- Mounting Type :
- Through Hole
- Wire Gauge (Min) :
- 12 AWG
- Wire Termination :
- Screw - Rising Cage Clamp
- Published :
- 2016
- Housing Material :
- Thermoplastic
- Contact Material :
- Brass
- Torque - Screw :
- 0.79 Nm (7.0 Lb-In)
- Weight :
- 28.349523g
- Min Operating Temperature :
- -40°C
- Current Rating :
- 16A
- Contact Material - Plating :
- Brass - Tin Plated
- Number of Levels :
- 1
- Mount :
- Panel, Through Hole
- Plating :
- Steel
- Wire Gauge :
- 12-26 AWG
- Contact Plating :
- Brass, Tin
- Packaging :
- Bulk
- Series :
- Euro-Mag EM2585
- Orientation :
- Straight
- Number of Positions Per Level :
- 18
- Wire Gauge (Max) :
- 26 AWG
- Positions Per Level :
- 18
- Operating Temperature :
- -40°C~105°C
- Number of Positions :
- 18
- Termination :
- Screw
- Voltage :
- 300V
- Factory Lead Time :
- 15 Weeks
- Datasheets
- EM258518V
0.197 5.00mm Bulk Thermoplastic Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 12-26 AWG Euro-Mag EM2585
EM258518V Overview
Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the Euro-Mag EM2585 Series, it can be found in this category.Temperatures below 105°C are best for using it.There's a minimum temperature of -40°C for this device.With its Interlocking (Side) feature, it is more powerful in many ways.In this case, Panel, Through Hole mounts the part.The device is operating at -40°C~105°C Operating Temperature.
EM258518V Features
Euro-Mag EM2585 series
EM258518V Applications
There are a lot of Eaton - Electronics Division
EM258518V Terminal Blocks applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
