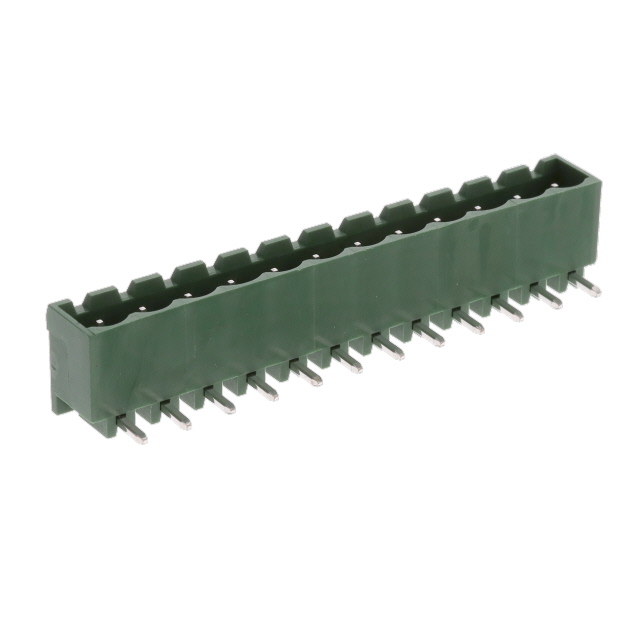

EM257512HC
Or copy the link below:
- Mfr.Part #
- EM257512HC
- Manufacturer
- Eaton-Electronics Division
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 12POS 5.08MM
- Stock
- 498
- In Stock ：
- 498
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Eaton-Electronics Division
- Product Category :
- Headers, Plugs and Sockets
- Number of Levels :
- 1
- Number of Contacts :
- 12
- Positions Per Level :
- 12
- Current - UL :
- 16A
- Termination :
- Solder
- Termination Style :
- Solder
- Number of Positions Per Level :
- 12
- Min Operating Temperature :
- -40°C
- Weight :
- 3.175147g
- Color :
- Green
- Material Flammability Rating :
- UL94 V-0
- Current Rating :
- 16A
- Insulation Height :
- 0.327 8.30mm
- Housing Material :
- Thermoplastic
- Voltage :
- 300V
- Mounting Type :
- Through Hole
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Operating Temperature :
- -40°C~105°C
- Voltage - Rated :
- 300V
- Type :
- Header, Male Pins, Shrouded (4 Side)
- Header Orientation :
- 90°, Right Angle
- Current :
- 16A
- Flammability Rating :
- UL94 V-0
- Factory Lead Time :
- 15 Weeks
- Contact Mating Finish :
- Tin
- Series :
- Euro-Mag EM2575
- Voltage - UL :
- 300V
- Published :
- 2011
- Contact Plating :
- Tin
- Pitch :
- 0.200 5.08mm
- Number of Positions :
- 12
- RoHS Status :
- RoHS Compliant
- Max Operating Temperature :
- 105°C
- Packaging :
- Bulk
- Contact Material :
- Brass
- Mount :
- Through Hole
- Contact Tail Length :
- 0.177 4.50mm
- Datasheets
- EM257512HC
EM257512HC Documents
Bulk 0.200 5.08mm Green 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Euro-Mag EM2575 Thermoplastic Tin Brass
EM257512HC Overview
This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the Euro-Mag EM2575 Series.If the temperature is below 105°C, it's best to use it.-40°C is the minimum temperature for this device.There is a mounting hole at Through Hole.Devices operate at -40°C~105°C operating temperatures.There are many benefits that this part shares with other Header, Male Pins, Shrouded (4 Side) products as well.
EM257512HC Features
Euro-Mag EM2575 series
EM257512HC Applications
There are a lot of Eaton - Electronics Division
EM257512HC Terminal Blocks applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
