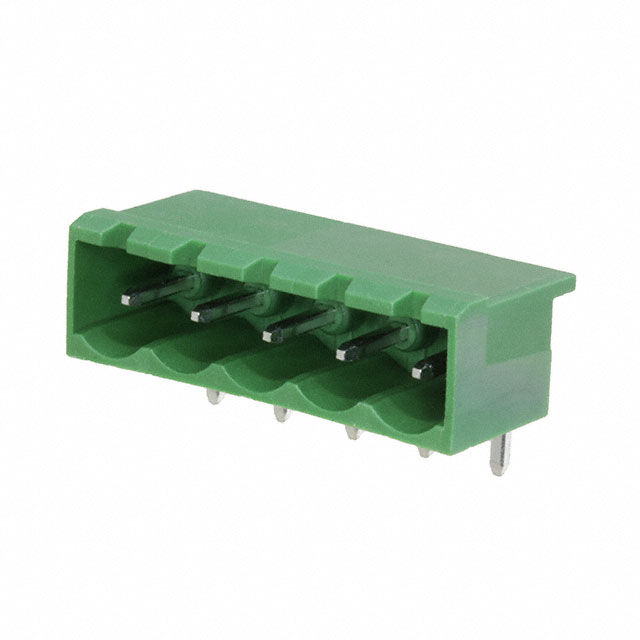

EM257505HC
Or copy the link below:
- Mfr.Part #
- EM257505HC
- Manufacturer
- Eaton-Electronics Division
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 5POS 90DEG 5.08MM
- Stock
- 37,534
- In Stock ：
- 37,534
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Eaton-Electronics Division
- Product Category :
- Headers, Plugs and Sockets
- Insulation Height :
- 0.327 8.30mm
- Wire Gauge (Max) :
- 26 AWG
- Flammability Rating :
- UL94 V-0
- Lead Free :
- Lead Free
- Wire Gauge (Min) :
- 16 AWG
- RoHS Status :
- RoHS Compliant
- Number of Contacts :
- 5
- Pitch :
- 0.200 5.08mm
- Termination Style :
- Solder
- Number of Poles :
- 5
- Current :
- 16A
- Series :
- Euro-Mag EM2575
- Factory Lead Time :
- 15 Weeks
- Type :
- Header, Male Pins, Shrouded (4 Side)
- Contact Plating :
- Tin
- Header Orientation :
- 90°, Right Angle
- Voltage - UL :
- 300V
- Mount :
- Through Hole
- Contact Mating Finish :
- Tin
- Max Operating Temperature :
- 105°C
- Weight :
- 2.267962g
- Contact Material :
- Brass
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Positions Per Level :
- 5
- Published :
- 2007
- Contact Tail Length :
- 0.177 4.50mm
- Material Flammability Rating :
- UL94 V-0
- Voltage :
- 300V
- Housing Material :
- Thermoplastic
- Packaging :
- Bulk
- Number of Positions :
- 5
- Color :
- Green
- Current Rating :
- 16A
- Operating Temperature :
- -40°C~105°C
- Current - UL :
- 16A
- Termination :
- Solder
- Number of Levels :
- 1
- Voltage - Rated :
- 300V
- Min Operating Temperature :
- -40°C
- Mounting Type :
- Through Hole
- Number of Positions Per Level :
- 5
- Datasheets
- EM257505HC
Bulk 0.200 5.08mm Green 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Euro-Mag EM2575 Thermoplastic Tin Brass
EM257505HC Overview
Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the Euro-Mag EM2575 Series.Use it when the temperature is below 105°C.Temperatures below -40°C are required for this device to operate.It is mounted by Through Hole.It operates at an operating temperature of -40°C~105°C.Compared to other Header, Male Pins, Shrouded (4 Side) products, this part has a lot of benefits to offer.
EM257505HC Features
Euro-Mag EM2575 series
EM257505HC Applications
There are a lot of Eaton - Electronics Division
EM257505HC Terminal Blocks applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
