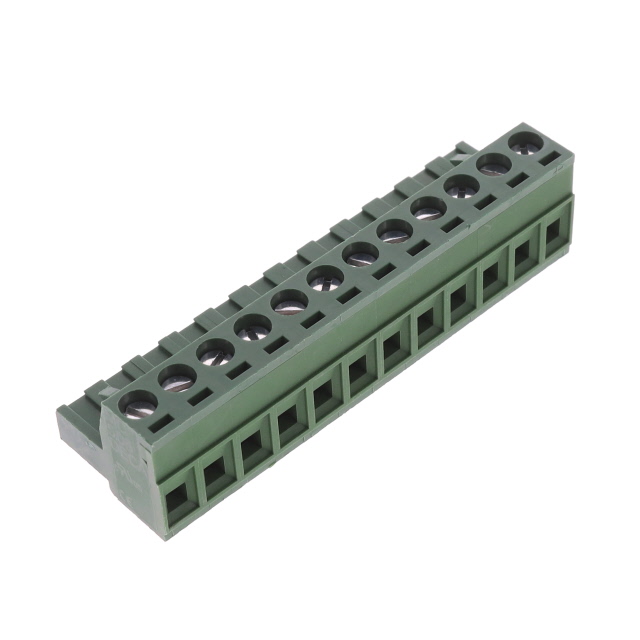

EM256512H
Or copy the link below:
- Mfr.Part #
- EM256512H
- Manufacturer
- Eaton-Electronics Division
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK PLUG 12POS STR 5.08MM
- Stock
- 249
- In Stock ：
- 249
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Eaton-Electronics Division
- Product Category :
- Headers, Plugs and Sockets
- Plug Wire Entry :
- 180°
- Operating Temperature :
- -40°C~105°C
- Number of Levels :
- 1
- Factory Lead Time :
- 15 Weeks
- Voltage - Rated :
- 300V
- Current Rating :
- 8A
- Termination Style :
- Screw
- Contact Plating :
- Tin
- Packaging :
- Bulk
- Positions Per Level :
- 12
- Voltage - UL :
- 300V
- Weight :
- 20.411657g
- Type :
- Plug, Female Sockets
- Screw Size :
- M3
- Termination :
- Screw
- Color :
- Green
- Min Operating Temperature :
- -40°C
- Torque - Screw :
- 0.79 Nm (7.0 Lb-In)
- Contact Material :
- Brass
- Material Flammability Rating :
- UL94 V-0
- Insulation Height :
- 0.570 14.48mm
- Feature :
- Positions Stamped, Retention Latches (Non-Wire Side)
- Max Operating Temperature :
- 105°C
- Published :
- 2017
- Wire Gauge (Max) :
- 26 AWG
- Housing Material :
- Thermoplastic
- Wire Gauge or Range - AWG :
- 12-26 AWG
- Contact Mating Finish :
- Tin
- Pitch :
- 0.200 5.08mm
- RoHS Status :
- RoHS Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mount :
- Free Hanging
- Flammability Rating :
- UL94 V-0
- Current - UL :
- 16A
- Wire Gauge (Min) :
- 12 AWG
- Number of Pins :
- 12
- Current :
- 16A
- Number of Positions :
- 12
- Voltage :
- 300V
- Series :
- Euro-Mag EM2565
- Mounting Type :
- Free Hanging (In-Line)
- Number of Positions Per Level :
- 12
- Datasheets
- EM256512H
EM256512H Documents
Bulk 0.200 5.08mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets Euro-Mag EM2565 Thermoplastic Tin Brass
EM256512HL1 Overview
There is a Free Hanging (In-Line) mounting type for the device.This product is packaged in a case marked Bulk.Product number Euro-Mag EM2565 belongs to the Euro-Mag EM2565 Series.A 12 pin is provided on the device.Whenever the temperature is below 105°C, it's best.There is a minimum temperature requirement of [0°C] for this device.In many ways, it is more powerful due to its Positions Stamped, Retention Latches (Non-Wire Side) feature.There is a Free Hanging mount on the part.This device operates at a temperature of -40°C~105°C.There are a lot of similarities between this part and other Plug, Female Sockets products.
EM256512HL1 Features
Euro-Mag EM2565 series
EM256512HL1 Applications
There are a lot of Eaton - Electronics Division
EM256512HL1 Terminal Blocks applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
