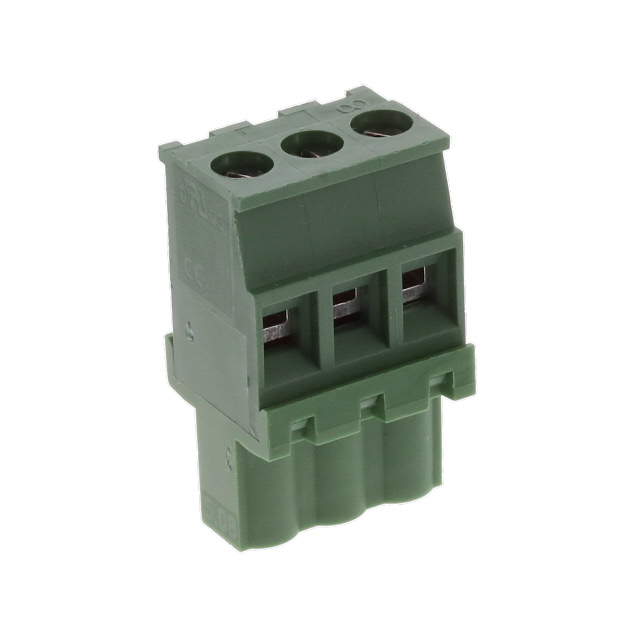

EM256503VR
Or copy the link below:
- Mfr.Part #
- EM256503VR
- Manufacturer
- Eaton-Electronics Division
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK PLUG 3POS 5.08MM
- Stock
- 137
- In Stock ：
- 137
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Eaton-Electronics Division
- Product Category :
- Headers, Plugs and Sockets
- Number of Contacts :
- 3
- Feature :
- Retention Latches (Non-Wire Side)
- Number of Positions :
- 3
- Contact Plating :
- Tin
- Wire Gauge (Min) :
- 12 AWG
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Free Hanging (In-Line)
- Positions Per Level :
- 3
- Flammability Rating :
- UL94 V-0
- Contact Mating Finish :
- Tin
- Operating Temperature :
- -40°C~105°C
- Voltage - UL :
- 300V
- RoHS Status :
- RoHS Compliant
- Current Rating :
- 8A
- Housing Material :
- Thermoplastic
- Wire Gauge (Max) :
- 26 AWG
- Termination :
- Screw
- Factory Lead Time :
- 15 Weeks
- Weight :
- 5.443108g
- Contact Material :
- Brass
- Number of Positions Per Level :
- 3
- Current - UL :
- 16A
- Max Operating Temperature :
- 105°C
- Color :
- Green
- Current :
- 16A
- Number of Levels :
- 1
- Min Operating Temperature :
- -40°C
- Published :
- 2011
- Pitch :
- 0.200 5.08mm
- Mount :
- Cable, Free Hanging
- Termination Style :
- Screw
- Material Flammability Rating :
- UL94 V-0
- Number of Rows :
- 1
- Wire Gauge or Range - AWG :
- 12-26 AWG
- Orientation :
- Straight
- Voltage - Rated :
- 300V
- Series :
- Euro-Mag EM2565
- Screw Size :
- M3
- Type :
- Plug, Female Sockets
- Voltage :
- 300V
- Torque - Screw :
- 0.79 Nm (7.0 Lb-In)
- Packaging :
- Bulk
- Plug Wire Entry :
- 270°
- Insulation Height :
- 1.024 26.01mm
- Datasheets
- EM256503VR
Bulk 0.200 5.08mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets Euro-Mag EM2565 Thermoplastic Tin Brass
EM256503VR Overview
This device has a Free Hanging (In-Line) mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the Euro-Mag EM2565 Series.If the temperature is below 105°C, it's best to use it.-40°C is the minimum temperature for this device.Several benefits come from the Retention Latches (Non-Wire Side) feature.There is a mounting hole at Cable, Free Hanging.Devices operate at -40°C~105°C operating temperatures.There are many benefits that this part shares with other Plug, Female Sockets products as well.
EM256503VR Features
Euro-Mag EM2565 series
EM256503VR Applications
There are a lot of Eaton - Electronics Division
EM256503VR Terminal Blocks applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
