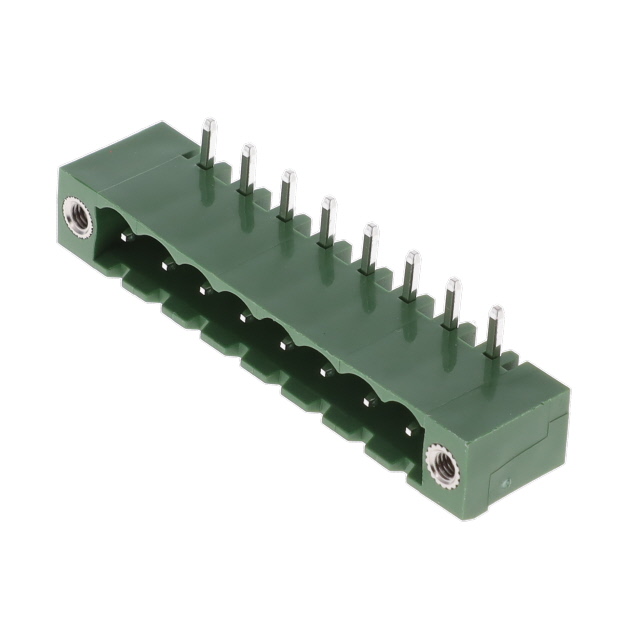

EM221808H
Or copy the link below:
- Mfr.Part #
- EM221808H
- Manufacturer
- Eaton-Electronics Division
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 8POS 90DEG 5.08MM
- Stock
- 100
- In Stock ：
- 100
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Eaton-Electronics Division
- Product Category :
- Headers, Plugs and Sockets
- Current - UL :
- 12A
- Type :
- Header, Male Pins, Shrouded (4 Side)
- Voltage - UL :
- 300V
- Factory Lead Time :
- 15 Weeks
- Weight :
- 4.989516g
- Operating Temperature :
- -55°C~105°C
- Min Operating Temperature :
- -55°C
- Flammability Rating :
- UL94 V-0
- Positions Per Level :
- 8
- Termination :
- Solder
- Contact Tail Length :
- 0.177 4.50mm
- Packaging :
- Bulk
- Feature :
- Mating Flange
- Housing Material :
- Thermoplastic
- Color :
- Green
- Max Operating Temperature :
- 105°C
- Contact Mating Finish :
- Tin
- Header Orientation :
- 90°, Right Angle
- Mounting Type :
- Through Hole
- Mount :
- Through Hole
- Number of Positions Per Level :
- 8
- Termination Style :
- Solder
- Series :
- Euro-Mag EM2218
- Number of Levels :
- 1
- Voltage :
- 300V
- Number of Positions :
- 8
- Contact Plating :
- Tin
- Voltage - Rated :
- 300V
- Contact Material :
- Brass
- Published :
- 2009
- Current :
- 12A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Material Flammability Rating :
- UL94 V-0
- Current Rating :
- 12A
- Insulation Height :
- 0.327 8.30mm
- Pitch :
- 0.200 5.08mm
- Number of Contacts :
- 8
- RoHS Status :
- RoHS Compliant
- Datasheets
- EM221808H
EM221808H Documents
Bulk 0.200 5.08mm Green 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Euro-Mag EM2218 Thermoplastic Tin Brass
EM221808H Overview
Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the Euro-Mag EM2218 Series, it can be found in this category.Temperatures below 105°C are best for using it.There's a minimum temperature of -55°C for this device.With its Mating Flange feature, it is more powerful in many ways.In this case, Through Hole mounts the part.The device is operating at -55°C~105°C Operating Temperature.There are a lot of similarities between this part and other Header, Male Pins, Shrouded (4 Side) products.
EM221808H Features
Euro-Mag EM2218 series
EM221808H Applications
There are a lot of Eaton - Electronics Division
EM221808H Terminal Blocks applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
