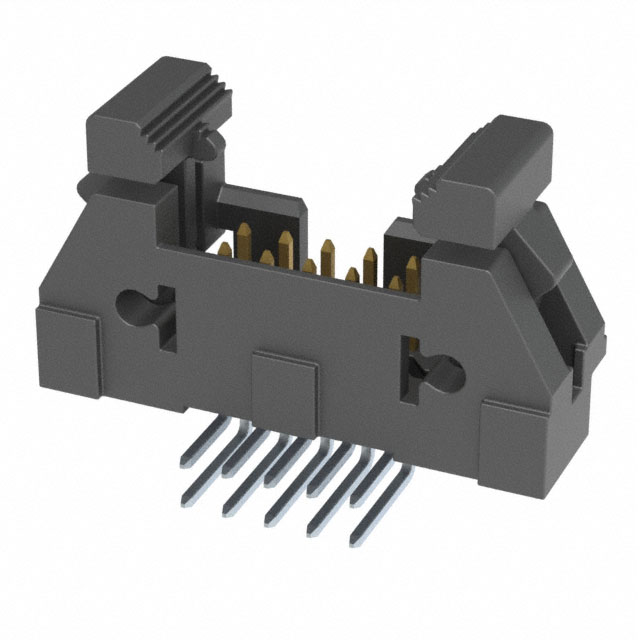

EJH-105-01-S-D-RA
Or copy the link below:
- Mfr.Part #
- EJH-105-01-S-D-RA
- Manufacturer
- Samtec, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 10POS 2.54MM
- Stock
- 113
- In Stock ：
- 113
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Samtec, Inc.
- Product Category :
- Headers, Male Pins
- Pitch - Mating :
- 0.100 2.54mm
- Number of Positions :
- 10
- Contact Finish - Mating :
- Gold
- Packaging :
- Tube
- Filter Feature :
- No
- Mating Contact Pitch :
- 0.1 inch
- Additional Feature :
- POLARIZED
- Contact Length - Mating :
- 0.225 5.72mm
- Mounting Option 2 :
- LOCKING
- Insulation Color :
- Black
- DIN Conformance :
- No
- Termination :
- Solder
- Mounting Type :
- Through Hole, Right Angle
- Series :
- EJH
- Polarization Key :
- POLARIZED HOUSING
- ECCN Code :
- EAR99
- Housing Material :
- Polymer
- Style :
- Board to Cable/Wire
- Insulation Height :
- 0.390 9.91mm
- JESD-609 Code :
- e3
- Feature :
- Keying Slot
- Length :
- 30.33mm
- Row Spacing - Mating :
- 0.100 (2.54mm)
- HTS Code :
- 8536.69.40.40
- Factory Lead Time :
- 3 Weeks
- Number of Rows :
- 2
- Contact Finish - Post :
- Tin
- Depth :
- 20.92mm
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Orientation :
- RIGHT ANGLE
- Contact Material :
- Phosphor Bronze
- Mixed Contacts :
- No
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Number Of PCB Rows :
- 2
- Option :
- GENERAL PURPOSE
- PCB Contact Pattern :
- RECTANGULAR
- Shrouding :
- Shrouded - 4 Wall
- Number of Conductors :
- ONE
- REACH SVHC :
- No SVHC
- Pbfree Code :
- yes
- Board Mounting Option :
- SPLIT BOARD LOCK
- Body Breadth :
- 0.39 inch
- RoHS Status :
- ROHS3 Compliant
- Contact Shape :
- Square
- Radiation Hardening :
- No
- MIL Conformance :
- No
- Connector Type :
- Header
- Fastening Type :
- Latch Lock/Eject Hooks
- Number of Positions Loaded :
- All
- Current Rating (Amps) :
- 3A
- Gender :
- Male
- Published :
- 2013
- Reliability :
- COMMERCIAL
- IEC Conformance :
- No
- Operating Temperature :
- -55°C~125°C
- Contact Type :
- Male Pin
- Contact Length - Post :
- 0.090 2.29mm
- Datasheets
- EJH-105-01-S-D-RA
EJH Series 2-Row Header Solder Phosphor Bronze Tube Through Hole, Right Angle Gold Liquid Crystal Polymer (LCP) 10-Position Board to Cable/Wire 0.390 9.91mm Height
EJH-105-01-S-D-RA Overview
The product comes in a package of Header.Through Hole, Right Angle is the type of mounting for the device.To package the product, a Tube case is used.The product is a member of the EJH Series.Among other features are POLARIZED, to name only a few.It is more powerful in many ways due to its Keying Slot feature.It operates at an operating temperature of -55°C~125°C.
EJH-105-01-S-D-RA Features
EJH series
EJH-105-01-S-D-RA Applications
There are a lot of Samtec Inc.
EJH-105-01-S-D-RA Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
