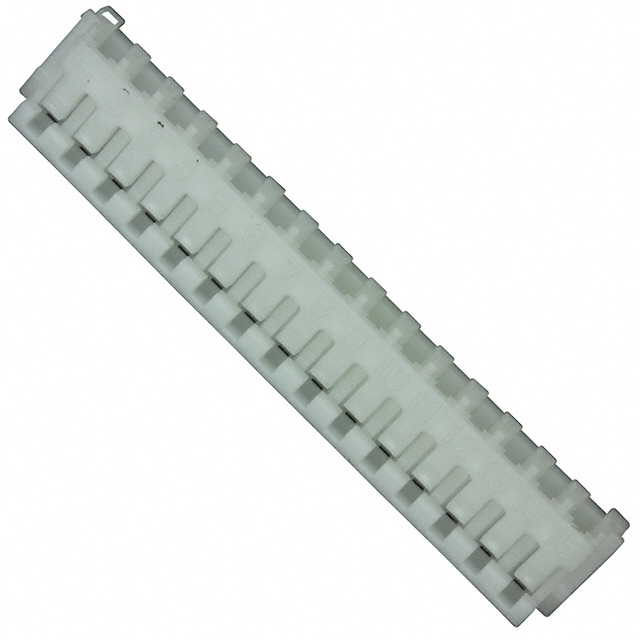

EHR-15

Manufacturer :

JST

Product Category :

Rectangular Connector Housings

Total Number of Contacts :

15

Contact Termination :

Crimp

Housing Color :

White

Contact Material :

NOT SPECIFIED

Number of Positions :

15

Orientation :

Straight

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

MIL Conformance :

No

Pitch :

0.098 2.50mm

Additional Feature :

POLARIZED

Connector Type :

Receptacle

Depth :

7.1mm

RoHS Status :

RoHS Compliant

Width :

3.8mm

HTS Code :

8536.69.40.40

Option :

GENERAL PURPOSE

Factory Lead Time :

16 Weeks

Housing Material :

Nylon

Length :

39.5mm

IEC Conformance :

No

Mixed Contacts :

No

DIN Conformance :

No

ECCN Code :

EAR99

Mount :

Cable, Free Hanging

Contact Type :

Female Socket

UL Flammability Code :

94V-0

Published :

2002

Contact Finish - Mating :

NOT SPECIFIED

Series :

EH

Lead Pitch :

2.5mm

Note :

Contacts Not Included

Pbfree Code :

yes

Mounting Type :

Free Hanging (In-Line)

Filter Feature :

No

Color :

Natural

Packaging :

Bulk

Number of Rows :

1

Lead Free :

Lead Free
