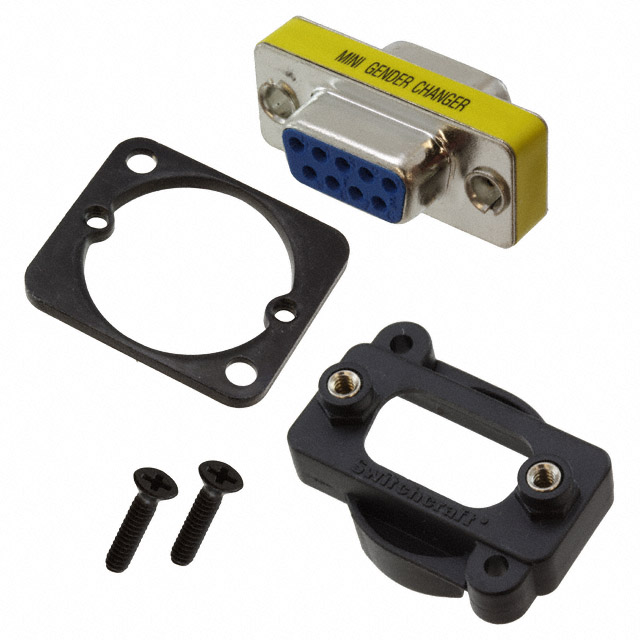

EHDB9FFB

Manufacturer :

Switchcraft / Conxall

Product Category :

D-Sub, D-Shaped Connector Adapters

Published :

2008

Connector Style :

Gender Changer

Factory Lead Time :

8 Weeks

Mixed Contacts :

No

Number of ContactsSide 1 :

9

Series :

EH

Housing Color :

Yellow

Color :

Black

IEC Conformance :

No

Empty Shell :

No

Number of Pins :

9

Gender :

Female to Female

Max Operating Temperature :

60°C

Number of Rows :

2

Convert To (Adapter End) :

D-Sub, 9 Pin Female

DIN Conformance :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Depth :

18.4mm

Includes :

5 pcs - 1 Connector, 1 Flange, 1 Housing, 2 Screws

Number of ContactsSide 2 :

9

Contact Finish :

Gold

Min Operating Temperature :

-10°C

Number of Ports :

1

JESD-609 Code :

e4

Option :

GENERAL PURPOSE

Mount :

Flanges, Panel

RoHS Status :

ROHS3 Compliant

Width :

26mm

Contact Material :

Brass

Straight Connection :

yes

Convert From (Adapter End) :

D-Sub, 9 Pin Female

Length :

31mm

Filter Feature :

No

Current Rating :

1.5A

Shell Material, Finish :

Nickel Silver, Black Chrome Plated

Lead Free :

Lead Free

MIL Conformance :

No

Mounting Type :

Panel Mount, Square Flange

Orientation :

Straight
