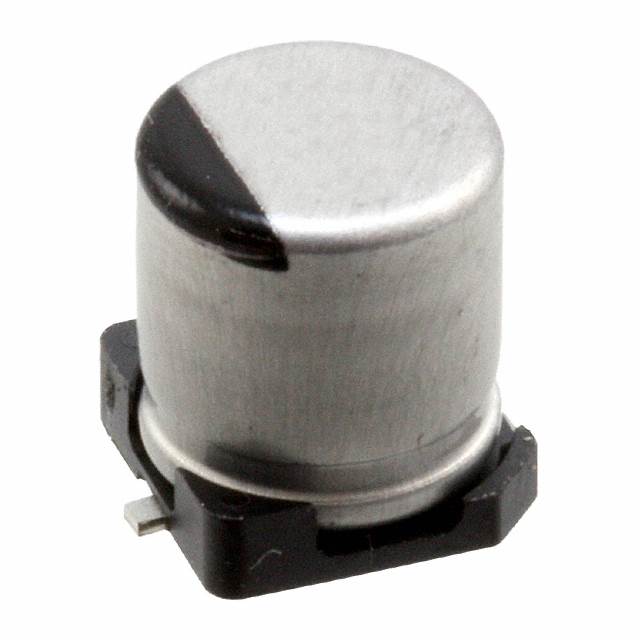

EEV-HD1C220R

Manufacturer :

Panasonic

Product Category :

Aluminum Electrolytic Capacitors

Surface Mount Land Size :

0.209Lx0.209W 5.30mmx5.30mm

Lifetime @ Temp :

5000 Hrs @ 105°C

Impedance :

7.2Ohm

Packaging :

Tape and Reel (TR)

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Size / Dimension :

0.197Dia 5.00mm

Operating Temperature :

-40°C~105°C

JESD-609 Code :

e0

Height Seated (Max) :

0.228 5.80mm

Tan Delta :

0.2

Dielectric Material :

ALUMINUM (WET)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Ripple Current @ High Frequency :

56.1mA @ 10kHz

Rated (DC) Voltage (URdc) :

16V

ESR :

7200 mΩ

ECCN Code :

EAR99

Length :

6.5mm

Reach Compliance Code :

Unknown

Terminal Finish :

Tin/Lead (Sn/Pb)

Published :

2005

Leakage Current :

0.00352mA

Voltage - Rated :

16V

Number of Terminations :

2

Package / Case :

Radial, Can - SMD

Applications :

GENERAL PURPOSE

Series :

HD-V

Custom Capabilities :

Vibration-Proof Available On Request

RoHS Status :

Non-RoHS Compliant

Ripple Current @ Low Frequency :

33mA @ 120Hz

Polarization :

Polar

Tolerance :

±20%

Width :

5.3mm

Additional Feature :

ESR IS MEASURED AT 100 KHZ

Terminal Shape :

ONE SURFACE

Mounting Type :

Surface Mount

Capacitance :

22µF

Size Code :

2621
