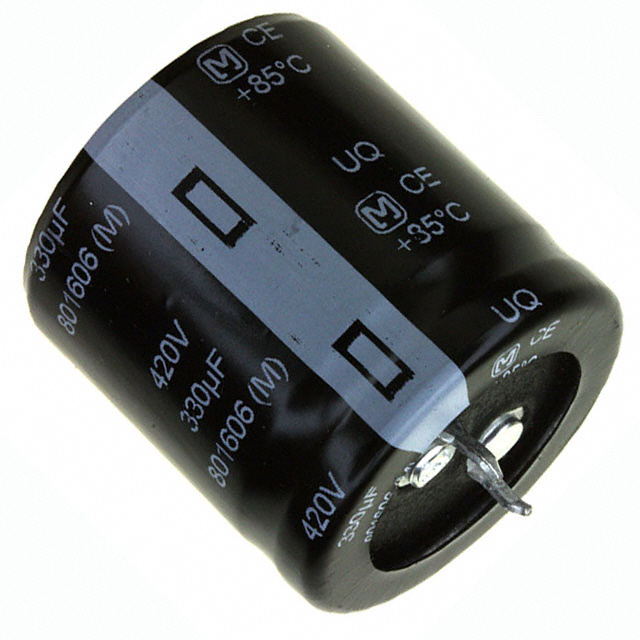

EET-UQ2S331KF

Manufacturer :

Panasonic

Product Category :

Aluminum Electrolytic Capacitors

Series :

TS-UQ

Lifetime @ Temp :

2000 Hrs @ 85°C

Size / Dimension :

1.181Dia 30.00mm

ESR (Equivalent Series Resistance) :

603mOhm @ 120Hz

Number of Pins :

2

RoHS Status :

RoHS Compliant

Ripple Current @ Low Frequency :

2.17A @ 120Hz

Voltage - Rated DC :

420V

Operating Temperature :

-25°C~85°C

Termination :

Snap in

Test Frequency :

120Hz

Number of Terminations :

2

Mounting Type :

Through Hole

JESD-609 Code :

e3

Polarization :

Polar

Ripple Current :

2.17A

Packaging :

Bulk

Life (Hours) :

2000 hours

Package / Case :

Radial, Can - Snap-In

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Dissipation Factor :

15 %

Radiation Hardening :

No

Published :

2007

ECCN Code :

EAR99

Diameter :

30mm

Tan Delta :

0.15

Applications :

GENERAL PURPOSE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Leakage Current :

1.11687mA

Lead Pitch :

10mm

Height :

30mm

Pbfree Code :

yes

Terminal Finish :

Tin (Sn)

Resistance :

603mOhm

Ripple Current @ High Frequency :

3.038A @ 10kHz

Lead Spacing :

0.394 10.00mm

Dielectric Material :

ALUMINUM (WET)

Mount :

Through Hole

Tolerance :

±20%

Height Seated (Max) :

1.181 30.00mm

Capacitance :

330µF
