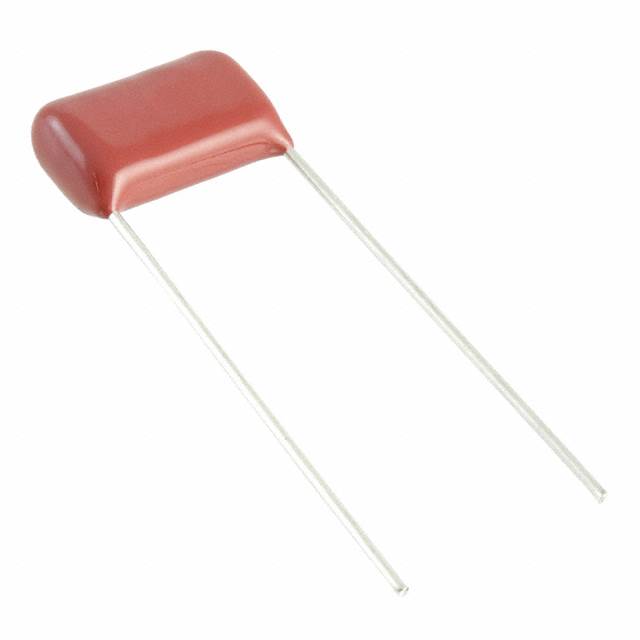

ECW-FD2W684K4
Or copy the link below:
- Mfr.Part #
- ECW-FD2W684K4
- Manufacturer
- Panasonic
- Package / Case
- Radial
- Datasheet
- Download
- Description
- CAP FILM 0.68UF 10% 450VDC RAD
- Stock
- 1,150
- In Stock ：
- 1,150
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Panasonic
- Product Category :
- Film Capacitors
- Package / Case :
- Radial
- RoHS Status :
- ROHS3 Compliant
- ECCN Code :
- EAR99
- Tolerance :
- ±10%
- Lead Spacing :
- 0.295 7.50mm
- Capacitor Type :
- FILM CAPACITOR
- Size Code :
- 6926
- Lead Pitch :
- 7.5mm
- Packing Method :
- Ammo Pack
- Dielectric :
- PP
- Depth :
- 6.7mm
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Number of Terminations :
- 2
- Packaging :
- Tape and Box (TB)
- Terminal Finish :
- Tin (Sn)
- HTS Code :
- 8532.25.00.80
- Operating Temperature :
- -40°C~110°C
- Mount :
- Through Hole
- Voltage - Rated :
- 450V
- Size / Dimension :
- 0.689Lx0.264W 17.50mmx6.70mm
- Height Seated (Max) :
- 0.390 9.90mm
- Termination :
- PC Pins
- Mounting Type :
- Through Hole
- Factory Lead Time :
- 15 Weeks
- Capacitance :
- 0.68µF
- Lead Diameter :
- 800 µm
- Applications :
- EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT
- JESD-609 Code :
- e3
- Series :
- ECW-F(D)
- REACH SVHC :
- Unknown
- Dielectric Material :
- Polypropylene (PP), Metallized
- Voltage - Rated DC :
- 450V
- Published :
- 2012
- Datasheets
- ECW-FD2W684K4
ECW-FD2W684K4 Documents
ECW-F(D) 0.68μF Film Capacitor ±10% Radial PC Pins 450V-DC Polypropylene (PP), Metallized Through Hole
ECW-FD2W684K4 Overview
There is 0.295 7.50mm lead spacing on this electrical device.-40°C~110°C is the maximum temperature at which the device can operate.
ECW-FD2W684K4 Features
ECW-FD2W684K4 Applications
There are a lot of Panasonic Electronic Components
ECW-FD2W684K4 applications of film capacitors.
- Coupling, decoupling
- Bypassing
- RFI for automotive
- Industrial and automotive inverters
- Battery management system
- Test and measuring equipment
- RF Modules
- Mobile communications
- Satellite TV
- Global positioning systems
