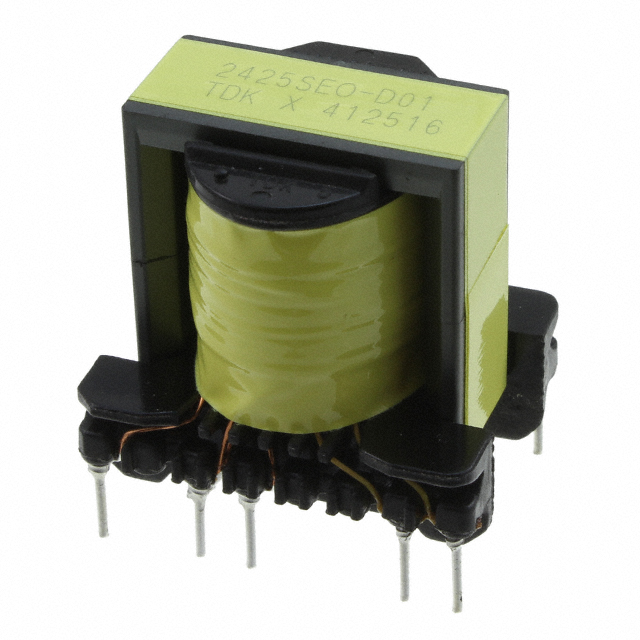

ECO2425SEO-D01V019
Or copy the link below:
- Mfr.Part #
- ECO2425SEO-D01V019
- Manufacturer
- TDK Corporation
- Package / Case
- Datasheet
- Download
- Description
- INDUCTOR/XFRMR
- Stock
- 18,630
- In Stock ：
- 18,630
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TDK Corporation
- Product Category :
- Switching Converter, SMPS Transformers
- Operating Temperature :
- -30°C~120°C
- Type :
- For AC/DC Converters
- Footprint :
- 1.400 L x 0.984 W (35.50mm x 25.00mm)
- Inductance @ Frequency :
- 1.06mH @ 10kHz
- Max Operating Temperature :
- 120°C
- Min Operating Temperature :
- -30°C
- Mount :
- Through Hole
- RoHS Status :
- ROHS3 Compliant
- Packaging :
- Bulk
- Mounting Type :
- Through Hole
- Published :
- 2013
- Voltage - Isolation :
- 1250Vrms
- Length :
- 28.5mm
- Height Seated (Max) :
- 1.240 31.50mm
- Series :
- ECO
- Width :
- 24mm
- Frequency :
- 100kHz
- Factory Lead Time :
- 10 Weeks
- Size / Dimension :
- 1.400Lx0.984W 35.50mmx25.00mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Applications :
- Flyback Converters
- Voltage - Primary :
- 264V~373V
- Voltage - Auxiliary :
- 5V @ 140mA 12.7V @ 1.18A 20V @ 50mA 20V @ 70mA
- Datasheets
- ECO2425SEO-D01V019
ECO2425SEO-D01V019 datasheet pdf and Switching Converter, SMPS Transformers product details from TDK Corporation stock available at
