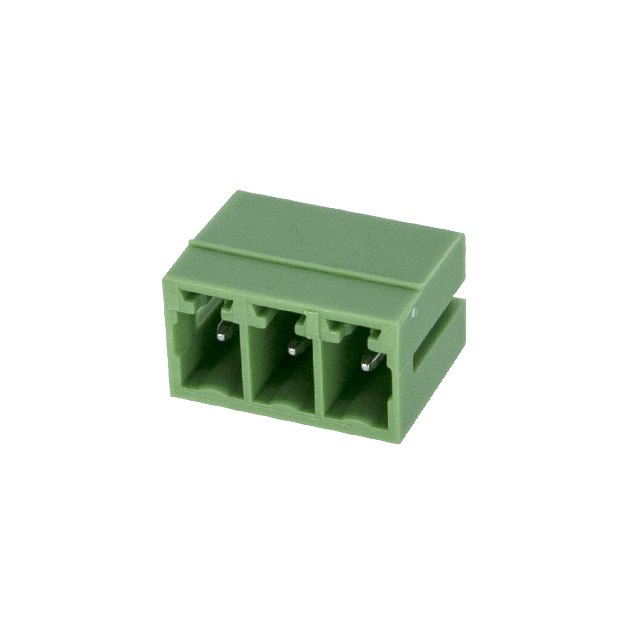

ECH381R-03P

Manufacturer :

DINKLE Corporation USA

Product Category :

Headers, Plugs and Sockets

Rated Current :

8 A

ECCN Code :

EAR99

Number of Poles :

3

Safety Approval :

CUL; UL; VDE

Product Status :

Active

Series :

ECH381R

Contact Mating Finish :

Tin

Number of Ways :

3

Operating Temperature :

-40°C ~ 120°C

Mounting Type :

Through Hole

Number of Positions :

3

Voltage - UL :

300 V

Voltage - IEC :

320 V

HTS Code :

8536.69.40.40

Positions Per Level :

3

Number of Rows :

1

Type :

Header,Male Pin,Covered(4 Sided)

Number of Decks :

1

Wire Gauge or Range - AWG :

-

Plug Wire Entry :

-

Fastening Method :

Connector

Package / Case :

Through Hole,P=3.81mm

Features :

-

Pitch :

0.150" 3.81mm

Package :

Bulk

Manufacturer :

Dinkle Enterprises

Terminal and Terminal Block Type :

BARRIER STRIP TERMINAL BLOCK

Current - UL :

8 A

Number of Levels :

1

Header Orientation :

90°,Right Angle

Rated Voltage :

300 V

Color :

Green

Wire Gauge or Range - mm² :

-

RoHS Status :

RoHS Compliant

Termination Style :

Solder

Current - IEC :

14A

Reach Compliance Code :

Compliant

Pbfree Code :

yes
