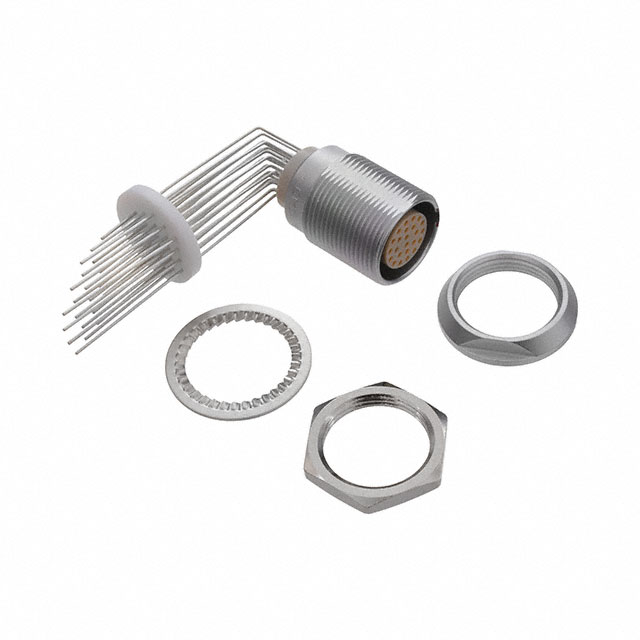

ECG.3B.324.CLV
Or copy the link below:
- Mfr.Part #
- ECG.3B.324.CLV
- Manufacturer
- LEMO
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT FMALE 24POS GOLD SLDR
- Stock
- 5
- In Stock ：
- 5
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- LEMO
- Product Category :
- Circular Connector Assemblies
- Insert Material :
- Polyetheretherketone (PEEK)
- Diameter :
- 25mm
- IEC Conformance :
- No
- Ratings :
- IP50
- MIL Conformance :
- No
- Length :
- 25.8mm
- Filter Feature :
- No
- Voltage - Rated DC :
- 1.34kV
- Connector Type :
- Receptacle, Female Sockets
- Color :
- Silver
- Mounting Type :
- Panel Mount, Through Hole, Right Angle
- DIN Conformance :
- No
- Total Number of Contacts :
- 24
- Series :
- 3B
- Shell Size - Insert :
- 324
- Mounting Feature :
- Front and Rear Side Nut
- Termination :
- Solder
- Contact Finish - Mating :
- Gold
- Fastening Type :
- Push-Pull
- Contact Finish Thickness - Mating :
- 59.0μin 1.50μm
- RoHS Status :
- ROHS3 Compliant
- HTS Code :
- 8536.69.40.20
- Current Rating (Amps) :
- 4A
- Shell Finish :
- Chrome
- Voltage - Rated AC :
- 950V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Material Flammability Rating :
- UL94 V-0
- Contact Material :
- Bronze
- Packaging :
- Bulk
- Shielding :
- Shielded
- Ingress Protection :
- IP50 - Dust Protected
- Coupling Type :
- Snap
- Empty Shell :
- No
- Orientation :
- G
- Shell Material :
- Brass
- Environmental Characteristics :
- CORROSION/MOISTURE RESISTANT
- Current Rating :
- 0A
- Mixed Contacts :
- No
- Operating Temperature :
- -55°C~250°C
- ECCN Code :
- EAR99
- Contact Gender :
- FEMALE
- Backshell Type :
- Solid
- Number of Positions :
- 24
- Mount :
- Panel, Through Hole
- Datasheets
- ECG.3B.324.CLV
ECG.3B.324.CLV Documents
Receptacle, Female Sockets Brass Panel Mount, Through Hole, Right Angle 24 Positions Solder Gold Chrome Bulk G Push-Pull
ECG.3B.324.CLV Overview
The product is packaged in Receptacle, Female Sockets.This device is mounted in the Panel Mount, Through Hole, Right Angle position.It has been determined that a Bulk case is necessary to package the product.There is a product in the 3B Series.Part Panel, Through Hole is mounted to the part.As a result, the device runs at -55°C~250°C Operating Temperature.
ECG.3B.324.CLV Features
3B series
ECG.3B.324.CLV Applications
There are a lot of LEMO
ECG.3B.324.CLV Circular Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
