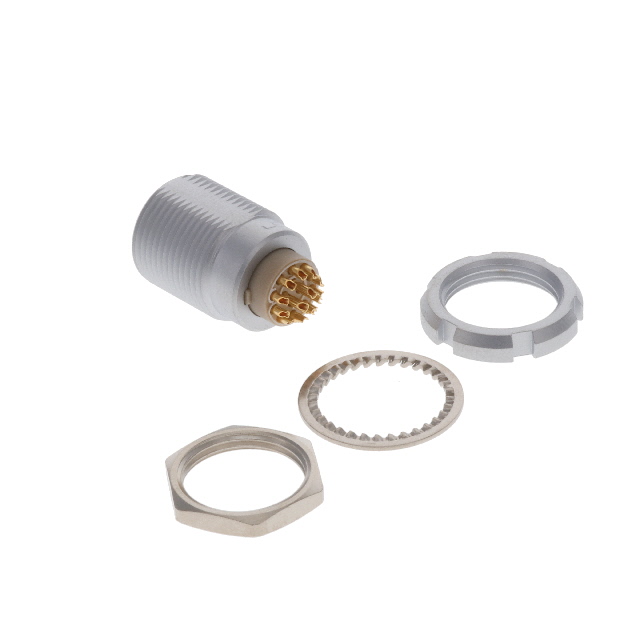

ECG.2B.314.CLL
Or copy the link below:
- Mfr.Part #
- ECG.2B.314.CLL
- Manufacturer
- LEMO
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT FMALE 14P SOLDER CUP
- Stock
- 1
- In Stock ：
- 1
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- LEMO
- Product Category :
- Circular Connector Assemblies
- Mounting Feature :
- Front and Rear Side Nut
- Ratings :
- IP50
- Number of Positions :
- 14
- Operating Temperature :
- -55°C~250°C
- Color :
- Silver
- Shell Material :
- Brass
- Mounting Type :
- Panel Mount
- Diameter :
- 19.2mm
- Connector Type :
- Receptacle, Female Sockets
- Mount :
- Front, Panel, Rear Side Nut
- Shielding :
- Shielded
- ECCN Code :
- EAR99
- Shell Size - Insert :
- 314
- RoHS Status :
- ROHS3 Compliant
- Orientation :
- G
- Contact Finish - Mating :
- Gold
- Shell Finish :
- Chrome
- Ingress Protection :
- IP50 - Dust Protected
- Fastening Type :
- Push-Pull
- HTS Code :
- 8536.69.40.20
- Gender :
- FEMALE
- Series :
- 2B
- Current Rating :
- 6.5A
- Insert Material :
- Polyetheretherketone (PEEK)
- Contact Style :
- Socket
- Pbfree Code :
- yes
- Contact Finish Thickness - Mating :
- 59.0μin 1.50μm
- Contact Material :
- Bronze
- Length :
- 21.8mm
- Termination :
- Solder Cup
- Packaging :
- Bulk
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Material Flammability Rating :
- UL94 V-0
- Datasheets
- ECG.2B.314.CLL
Receptacle, Female Sockets Brass Panel Mount 14 Positions Solder Cup Gold Chrome Bulk G Push-Pull
ECG.2B.314.CLL Overview
Packaging is in the form of Receptacle, Female Sockets.This device has a Panel Mount mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the 2B Series.There is a mounting hole at Front, Panel, Rear Side Nut.Devices operate at -55°C~250°C operating temperatures.
ECG.2B.314.CLL Features
2B series
ECG.2B.314.CLL Applications
There are a lot of LEMO
ECG.2B.314.CLL Circular Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
