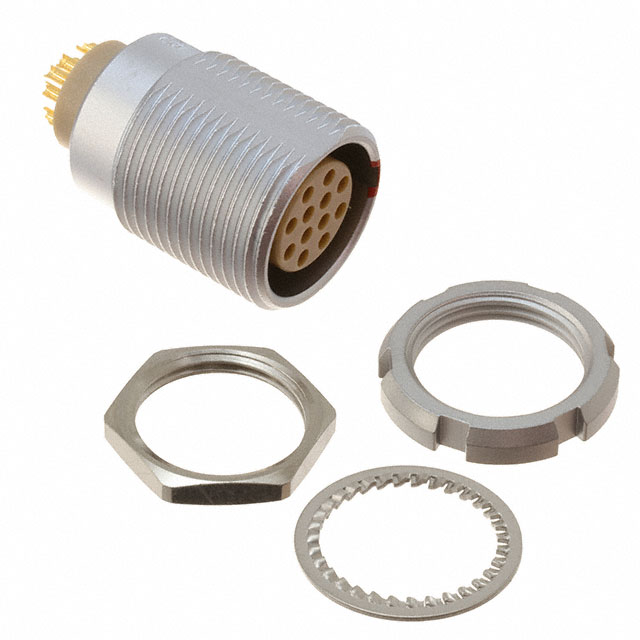

ECG.2B.312.CLL
Or copy the link below:
- Mfr.Part #
- ECG.2B.312.CLL
- Manufacturer
- LEMO
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT FMALE 12P SOLDER CUP
- Stock
- 53
- In Stock ：
- 53
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- LEMO
- Product Category :
- Circular Connector Assemblies
- Mount :
- Front, Panel, Rear Side Nut
- Contact Material :
- Bronze
- Insert Material :
- Polyetheretherketone (PEEK)
- Current Rating :
- 7A
- Backshell Type :
- Solid
- Factory Lead Time :
- 12 Weeks
- MIL Conformance :
- No
- Total Number of Contacts :
- 12
- Connector Type :
- Receptacle, Female Sockets
- Series :
- 2B
- Shielding :
- Shielded
- Diameter :
- 19.2mm
- Ratings :
- IP50
- Voltage - Rated AC :
- 1.25kV
- Empty Shell :
- No
- Mounting Feature :
- Front and Rear Side Nut
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Length :
- 21.8mm
- RoHS Status :
- ROHS3 Compliant
- Voltage - Rated DC :
- 1.77kV
- Wire/Cable Gauge :
- 22 AWG
- Filter Feature :
- No
- Packaging :
- Bulk
- Contact Style :
- Socket
- Contact Finish - Mating :
- Gold
- Ingress Protection :
- IP50 - Dust Protected
- Material Flammability Rating :
- UL94 V-0
- Operating Temperature :
- -55°C~250°C
- Contact Gender :
- FEMALE
- Number of Positions :
- 12
- DIN Conformance :
- No
- Contact Finish Thickness - Mating :
- 59.0μin 1.50μm
- Termination :
- Solder Cup
- Shell Material :
- Brass
- Shell Size - Insert :
- 312
- Coupling Type :
- Snap
- Shell Finish :
- Chrome
- Mounting Type :
- Panel Mount
- Orientation :
- G
- IEC Conformance :
- No
- Mixed Contacts :
- No
- Fastening Type :
- Push-Pull
- Color :
- Silver
- Datasheets
- ECG.2B.312.CLL
ECG.2B.312.CLL Documents
Receptacle, Female Sockets Brass Panel Mount 12 Positions Solder Cup Gold Chrome Bulk G Push-Pull
ECG.2B.312.CLL Overview
This product is packaged in a Receptacle, Female Sockets box.Panel Mount indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the 2B Series.By Front, Panel, Rear Side Nut, the part is mounted.Operating temperature is set to -55°C~250°C.
ECG.2B.312.CLL Features
2B series
ECG.2B.312.CLL Applications
There are a lot of LEMO
ECG.2B.312.CLL Circular Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
