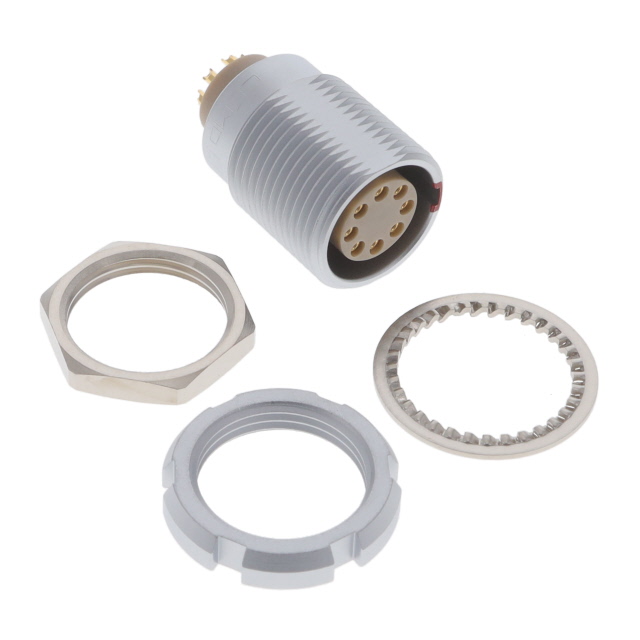

ECG.2B.308.CLL
Or copy the link below:
- Mfr.Part #
- ECG.2B.308.CLL
- Manufacturer
- LEMO
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT FMALE 8P GOLD SLDR CUP
- Stock
- 11,210
- In Stock ：
- 11,210
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- LEMO
- Product Category :
- Circular Connector Assemblies
- Shell Material :
- Brass
- Diameter :
- 19.2mm
- Ingress Protection :
- IP50 - Dust Protected
- Length :
- 21.8mm
- Current Rating :
- 10A
- Contact Finish - Mating :
- Gold
- Material Flammability Rating :
- UL94 V-0
- Color :
- Silver
- Wire/Cable Gauge :
- 22 AWG
- Contact Gender :
- FEMALE
- Contact Finish Thickness - Mating :
- 59.0μin 1.50μm
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Series :
- 2B
- Packaging :
- Bulk
- Contact Style :
- Socket
- Shell Finish :
- Chrome
- Connector Type :
- Receptacle, Female Sockets
- Shielding :
- Shielded
- Contact Material :
- Bronze
- Mounting Type :
- Panel Mount
- Mount :
- Front, Panel, Rear Side Nut
- Termination :
- Solder Cup
- Ratings :
- IP50
- Number of Positions :
- 8
- Orientation :
- G
- Shell Size - Insert :
- 308
- Mounting Feature :
- Front and Rear Side Nut
- Insert Material :
- Polyetheretherketone (PEEK)
- Operating Temperature :
- -55°C~250°C
- Pbfree Code :
- yes
- RoHS Status :
- ROHS3 Compliant
- ECCN Code :
- EAR99
- Fastening Type :
- Push-Pull
- Datasheets
- ECG.2B.308.CLL
Receptacle, Female Sockets Brass Panel Mount 8 Positions Solder Cup Gold Chrome Bulk G Push-Pull
ECG.2B.308.CLL Description
ECG.2B.308.CLL is a push-pull circular connector. Push-pull circular connectors feature a spring-action cylindrical sleeve surrounding or within the integral connector housing that self-latches when the connector is pushed into position. The connection is released through a squeeze-and-pull, rotate-and-pull, or other specific unlocking action that prevents accidental disconnection.
ECG.2B.308.CLL Features
Shell Style/Model: EC*: Fixed receptacle with two nuts (back panel mounting)
Keying: 1 key
Housing Material: Brass shell and collet nut, nickel plated brass latch sleeve, and mid pieces
Weight: 16.71 g
Rated Current: 10 Amps
ECG.2B.308.CLL Applications
Medical
Industrial
Test & Measurement
A/V
Communications
Automotive
