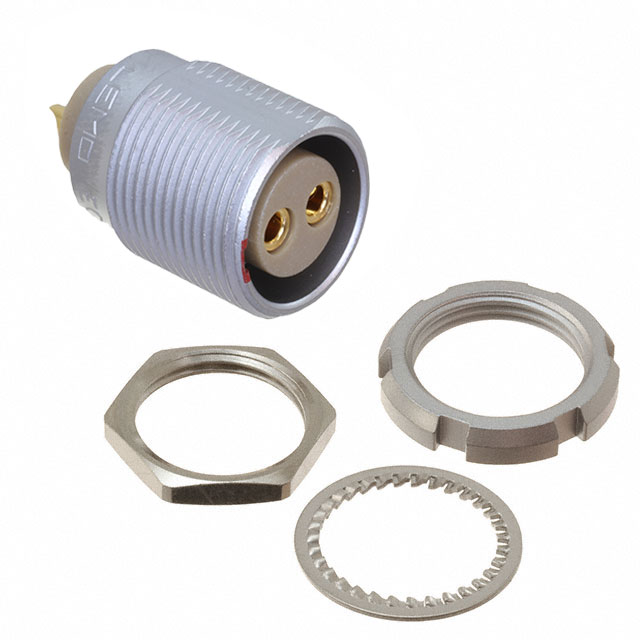

ECG.2B.302.CLL
Or copy the link below:
- Mfr.Part #
- ECG.2B.302.CLL
- Manufacturer
- LEMO
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT FMALE 2P GOLD SLDR CUP
- Stock
- 307
- In Stock ：
- 307
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- LEMO
- Product Category :
- Circular Connector Assemblies
- Mounting Feature :
- Front and Rear Side Nut
- Insert Material :
- Polyetheretherketone (PEEK)
- Contact Finish Thickness - Mating :
- 59.0μin 1.50μm
- Shell Material :
- Brass
- RoHS Status :
- ROHS3 Compliant
- Contact Gender :
- FEMALE
- Mount :
- Front, Panel, Rear Side Nut
- Ingress Protection :
- IP50 - Dust Protected
- Mounting Type :
- Panel Mount
- ECCN Code :
- EAR99
- Packaging :
- Bulk
- DIN Conformance :
- No
- Shell Size - Insert :
- 302
- Operating Temperature :
- -55°C~250°C
- Diameter :
- 19.2mm
- Material Flammability Rating :
- UL94 V-0
- Empty Shell :
- No
- Color :
- Silver
- Backshell Type :
- Solid
- Shell Finish :
- Chrome
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Number of Positions :
- 2
- Mixed Contacts :
- No
- Filter Feature :
- No
- Ratings :
- IP50
- Contact Style :
- Socket
- MIL Conformance :
- No
- Contact Finish - Mating :
- Gold
- Shielding :
- Shielded
- Coupling Type :
- Snap
- Termination :
- Solder Cup
- Contact Material :
- Bronze
- Orientation :
- G
- Total Number of Contacts :
- 2
- Current Rating :
- 25A
- Connector Type :
- Receptacle, Female Sockets
- Length :
- 21.8mm
- Fastening Type :
- Push-Pull
- Factory Lead Time :
- 12 Weeks
- IEC Conformance :
- No
- Series :
- 2B
- Datasheets
- ECG.2B.302.CLL
Receptacle, Female Sockets Brass Panel Mount 2 Positions Solder Cup Gold Chrome Bulk G Push-Pull
ECG.2B.302.CLL Overview
Packaging is Receptacle, Female Sockets.Panel Mount is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the 2B Series, it can be found in this category.In this case, Front, Panel, Rear Side Nut mounts the part.The device is operating at -55°C~250°C Operating Temperature.
ECG.2B.302.CLL Features
2B series
ECG.2B.302.CLL Applications
There are a lot of LEMO
ECG.2B.302.CLL Circular Connectors applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
