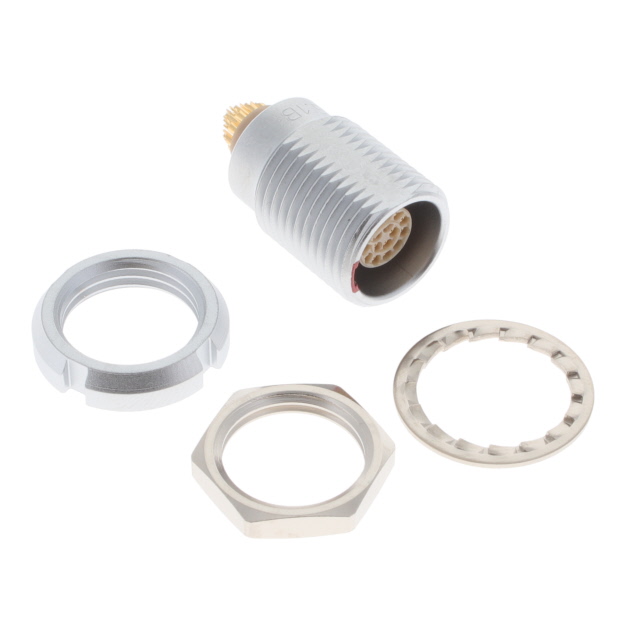

ECG.1B.316.CLL
Or copy the link below:
- Mfr.Part #
- ECG.1B.316.CLL
- Manufacturer
- LEMO
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT FMALE 16P SOLDER CUP
- Stock
- 53
- In Stock ：
- 53
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- LEMO
- Product Category :
- Circular Connector Assemblies
- Fastening Type :
- Push-Pull
- Operating Temperature :
- -55°C~250°C
- Mounting Feature :
- Front and Rear Side Nut
- RoHS Status :
- ROHS3 Compliant
- Current Rating :
- 1.5A
- Contact Material :
- Bronze
- Shell Material :
- Brass
- Mounting Type :
- Panel Mount
- Wire/Cable Gauge :
- 28 AWG
- Shell Finish :
- Chrome
- Mount :
- Front, Panel, Rear Side Nut
- Diameter :
- 15.8mm
- Shielding :
- Shielded
- Length :
- 19.8mm
- Ingress Protection :
- IP50 - Dust Protected
- Orientation :
- G
- Pbfree Code :
- yes
- Ratings :
- IP50
- Voltage - Rated AC :
- 800V
- Contact Finish - Mating :
- Gold
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Voltage - Rated DC :
- 1.13kV
- Material Flammability Rating :
- UL94 V-0
- Contact Gender :
- FEMALE
- Shell Size - Insert :
- 316
- Packaging :
- Bulk
- Series :
- 1b
- Number of Positions :
- 16
- Termination :
- Solder Cup
- Color :
- Silver
- Connector Type :
- Receptacle, Female Sockets
- Contact Style :
- Socket
- Insert Material :
- Polyetheretherketone (PEEK)
- Contact Finish Thickness - Mating :
- 59.0μin 1.50μm
- Datasheets
- ECG.1B.316.CLL
Receptacle, Female Sockets Brass Panel Mount 16 Positions Solder Cup Gold Chrome Bulk G Push-Pull
ECG.1B.316.CLL Overview
This product is packaged in a Receptacle, Female Sockets carton.Panel Mount is the mounting type for the device.The product is packaged in a Bulk case.It's part of the 1B Series.Mounting of the part is based on Front, Panel, Rear Side Nut.It runs at -55°C~250°C Operating Temperature.
ECG.1B.316.CLL Features
1B series
ECG.1B.316.CLL Applications
There are a lot of LEMO
ECG.1B.316.CLL Circular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
