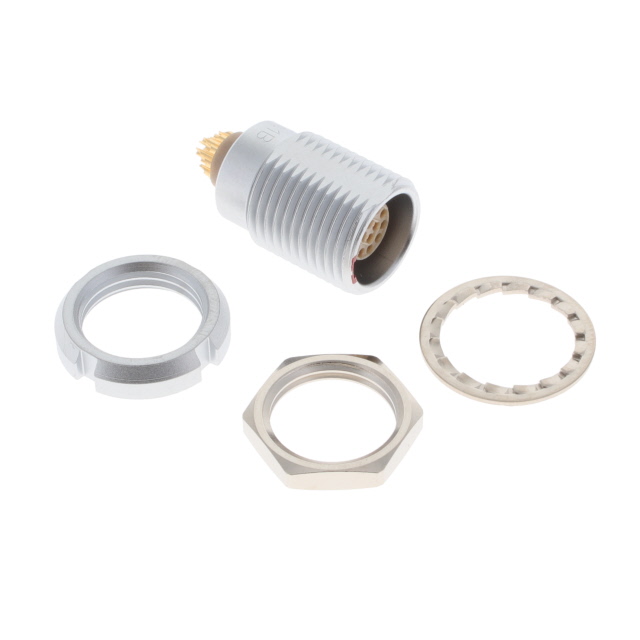

ECG.1B.314.CLL
Or copy the link below:
- Mfr.Part #
- ECG.1B.314.CLL
- Manufacturer
- LEMO
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT FMALE 14P SOLDER CUP
- Stock
- 2
- In Stock ：
- 2
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- LEMO
- Product Category :
- Circular Connector Assemblies
- Contact Style :
- Socket
- Shell Size - Insert :
- 314
- Mounting Feature :
- Front and Rear Side Nut
- Shell Finish :
- Chrome
- Mounting Type :
- Panel Mount
- Fastening Type :
- Push-Pull
- Contact Finish - Mating :
- Gold
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Contact Finish Thickness - Mating :
- 59.0μin 1.50μm
- Shell Material :
- Brass
- Contact Gender :
- FEMALE
- Length :
- 19.8mm
- Packaging :
- Bulk
- Series :
- 1b
- Diameter :
- 15.8mm
- Termination :
- Solder Cup
- Pbfree Code :
- yes
- HTS Code :
- 8536.69.40.20
- Ratings :
- IP50
- Contact Material :
- Bronze
- Current Rating :
- 2A
- Insert Material :
- Polyetheretherketone (PEEK)
- Shielding :
- Shielded
- Material Flammability Rating :
- UL94 V-0
- Connector Type :
- Receptacle, Female Sockets
- RoHS Status :
- ROHS3 Compliant
- Number of Positions :
- 14
- Color :
- Silver
- Ingress Protection :
- IP50 - Dust Protected
- ECCN Code :
- EAR99
- Operating Temperature :
- -55°C~250°C
- Orientation :
- G
- Mount :
- Front, Panel, Rear Side Nut
- Datasheets
- ECG.1B.314.CLL
Receptacle, Female Sockets Brass Panel Mount 14 Positions Solder Cup Gold Chrome Bulk G Push-Pull
ECG.1B.314.CLL Overview
A Receptacle, Female Sockets package is included with it.Its mounting type is Panel Mount.Packaging is performed using a Bulk case.It is part of the 1B Series of products.Front, Panel, Rear Side Nut mounts the part.There is no operating temperature for the device.
ECG.1B.314.CLL Features
1B series
ECG.1B.314.CLL Applications
There are a lot of LEMO
ECG.1B.314.CLL Circular Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
