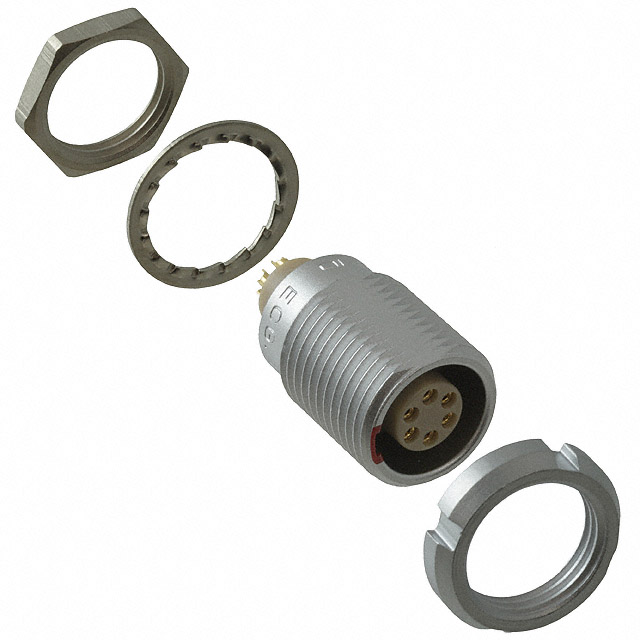

ECG.1B.306.CLN
Or copy the link below:
- Mfr.Part #
- ECG.1B.306.CLN
- Manufacturer
- LEMO
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT FMALE 6POS GOLD SOLDER
- Stock
- 121
- In Stock ：
- 121
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- LEMO
- Product Category :
- Circular Connector Assemblies
- Pbfree Code :
- yes
- ECCN Code :
- EAR99
- Current Rating :
- 7A
- Contact Finish - Mating :
- Gold
- Fastening Type :
- Push-Pull
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Ratings :
- IP50
- DIN Conformance :
- No
- Mixed Contacts :
- No
- Empty Shell :
- No
- MIL Conformance :
- No
- Contact Style :
- Socket
- Mounting Type :
- Panel Mount, Through Hole
- Length :
- 19.8mm
- Filter Feature :
- No
- Termination :
- Solder
- Ingress Protection :
- IP50 - Dust Protected
- Shell Material :
- Brass
- Total Number of Contacts :
- 6
- Mounting Feature :
- Front and Rear Side Nut
- Additional Feature :
- POLARISED
- Color :
- Silver
- Connector Type :
- Receptacle, Female Sockets
- Coupling Type :
- Snap
- Series :
- 1b
- Mount :
- Panel, Through Hole
- Shell Size - Insert :
- 306
- Backshell Type :
- Solid
- Shielding :
- Shielded
- Environmental Characteristics :
- CORROSION/MOISTURE RESISTANT
- Diameter :
- 15.8mm
- Material Flammability Rating :
- UL94 V-0
- Contact Finish Thickness - Mating :
- 59.0μin 1.50μm
- Contact Material :
- Bronze
- IEC Conformance :
- No
- Packaging :
- Bulk
- Contact Gender :
- FEMALE
- RoHS Status :
- ROHS3 Compliant
- Insert Material :
- Polyetheretherketone (PEEK)
- Shell Finish :
- Chrome
- Orientation :
- G
- Number of Positions :
- 6
- Operating Temperature :
- -55°C~250°C
- Datasheets
- ECG.1B.306.CLN
Receptacle, Female Sockets Brass Panel Mount, Through Hole 6 Positions Solder Gold Chrome Bulk G Push-Pull
ECG.1B.306.CLN Overview
Packaging is Receptacle, Female Sockets.Panel Mount, Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the 1B Series, it can be found in this category.There are also other features such as POLARISED, to name only a few.In this case, Panel, Through Hole mounts the part.The device is operating at -55°C~250°C Operating Temperature.
ECG.1B.306.CLN Features
1B series
ECG.1B.306.CLN Applications
There are a lot of LEMO
ECG.1B.306.CLN Circular Connectors applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
