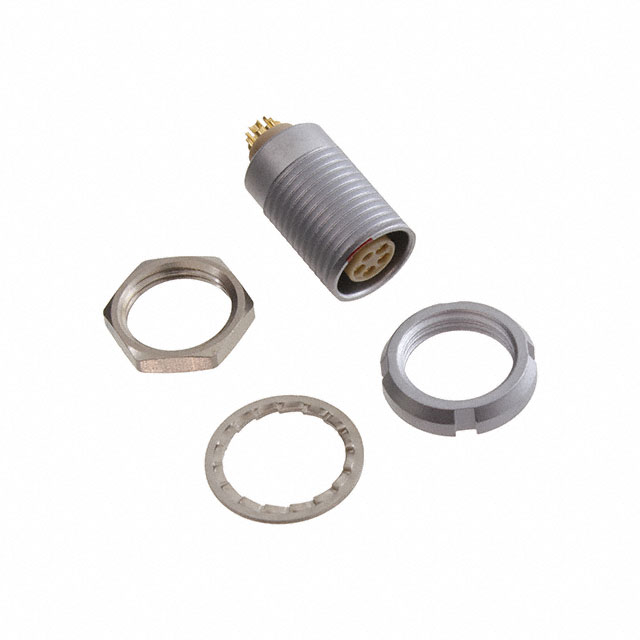

ECG.1B.305.CLL
Or copy the link below:
- Mfr.Part #
- ECG.1B.305.CLL
- Manufacturer
- LEMO
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT FMALE 5P GOLD SLDR CUP
- Stock
- 136
- In Stock ：
- 136
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- LEMO
- Product Category :
- Circular Connector Assemblies
- Current Rating :
- 9A
- Shell Finish :
- Chrome
- Contact Finish Thickness - Mating :
- 59.0μin 1.50μm
- RoHS Status :
- ROHS3 Compliant
- Ratings :
- IP50
- Filter Feature :
- No
- Empty Shell :
- No
- ECCN Code :
- EAR99
- Material Flammability Rating :
- UL94 V-0
- DIN Conformance :
- No
- Contact Material :
- Bronze
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Bulk
- Shielding :
- Shielded
- Mounting Type :
- Panel Mount
- Number of Positions :
- 5
- Orientation :
- G
- Mounting Feature :
- Front and Rear Side Nut
- Insert Material :
- Polyetheretherketone (PEEK)
- Color :
- Silver
- Connector Type :
- Receptacle, Female Sockets
- Operating Temperature :
- -55°C~250°C
- Contact Gender :
- FEMALE
- Ingress Protection :
- IP50 - Dust Protected
- Shell Material :
- Brass
- Length :
- 19.8mm
- Total Number of Contacts :
- 5
- Fastening Type :
- Push-Pull
- Mixed Contacts :
- No
- Backshell Type :
- Solid
- Contact Finish - Mating :
- Gold
- Shell Size - Insert :
- 305
- Coupling Type :
- Snap
- IEC Conformance :
- No
- Mount :
- Front, Panel, Rear Side Nut
- MIL Conformance :
- No
- Diameter :
- 15.8mm
- Termination :
- Solder Cup
- Series :
- 1b
- Contact Style :
- Socket
- Datasheets
- ECG.1B.305.CLL
ECG.1B.305.CLL Documents
Receptacle, Female Sockets Brass Panel Mount 5 Positions Solder Cup Gold Chrome Bulk G Push-Pull
ECG.1B.305.CLL Overview
Packaging for this item is Receptacle, Female Sockets.There is a mounting type of Panel Mount for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the 1B Series.Front, Panel, Rear Side Nut is used to mount the part.In this case, the device operates at -55°C~250°C Operating Temperature.
ECG.1B.305.CLL Features
1B series
ECG.1B.305.CLL Applications
There are a lot of LEMO
ECG.1B.305.CLL Circular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
