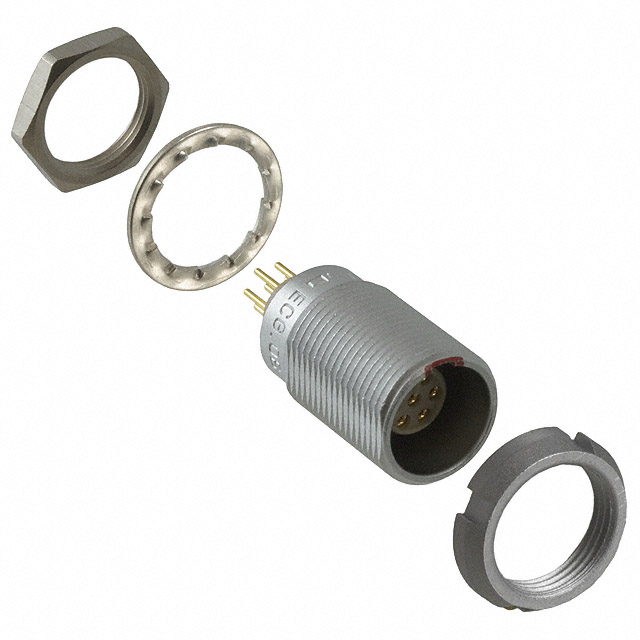

ECG.0B.307.CLN

Manufacturer :

LEMO

Product Category :

Circular Connector Assemblies

Mounting Feature :

Front and Rear Side Nut

Current Rating :

2.5A

Connector Type :

Receptacle, Female Sockets

Material Flammability Rating :

UL94 V-0

Series :

0B

Factory Lead Time :

12 Weeks

ECCN Code :

EAR99

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS Status :

ROHS3 Compliant

Shell Material :

Brass

Contact Finish Thickness - Mating :

59.0μin 1.50μm

Ingress Protection :

IP50 - Dust Protected

Total Number of Contacts :

7

Pbfree Code :

yes

Orientation :

G

Color :

Silver

Contact Material :

Bronze

Length :

16.1mm

Insert Material :

Polyetheretherketone (PEEK)

Termination :

Solder

Mounting Type :

Panel Mount, Through Hole

DIN Conformance :

No

Filter Feature :

No

Shell Size - Insert :

307

Contact Style :

Socket

Environmental Characteristics :

CORROSION/MOISTURE RESISTANT

Shell Finish :

Chrome

Diameter :

12.4mm

Packaging :

Bulk

MIL Conformance :

No

Contact Finish - Mating :

Gold

Contact Gender :

FEMALE

Empty Shell :

No

Mount :

Panel, Through Hole

HTS Code :

8536.69.40.20

Ratings :

IP50

IEC Conformance :

No

Number of Positions :

7

Coupling Type :

Snap

Backshell Type :

Solid

Shielding :

Shielded

Mixed Contacts :

No

Operating Temperature :

-55°C~250°C

Fastening Type :

Push-Pull
