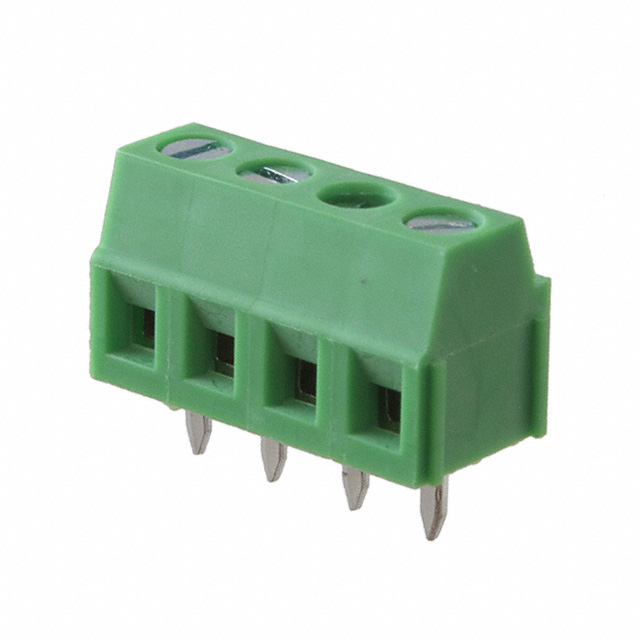

EBWA-04-B

Manufacturer :

Adam Tech

Product Category :

Wire to Board

Wire Gauge :

16-28 AWG

Series :

EB

RoHS Status :

ROHS3 Compliant

Mounting Type :

Through Hole

Screw Material - Plating :

Steel - Zinc Plated

Screw Thread :

M2

Positions Per Level :

4

Mating Orientation :

Horizontal with Board

Operating Temperature :

-40°C~105°C

Current :

10A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pitch :

0.150 3.81mm

Housing Material :

Polyamide (PA66), Nylon 6/6

Factory Lead Time :

9 Weeks

Wire Termination :

Screw - Rising Cage Clamp

Number of Levels :

1

Packaging :

Bulk

Contact Material - Plating :

Brass - Tin Plated

Feature :

Interlocking (Side)

Voltage :

300V

Torque - Screw :

0.2 Nm (1.7 Lb-In)

Color :

Green
