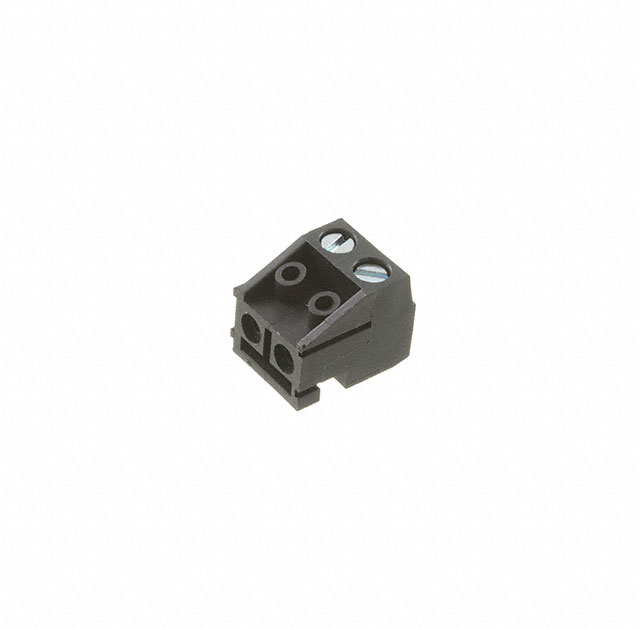

EBJA-02-C-BK
Or copy the link below:
- Mfr.Part #
- EBJA-02-C-BK
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- EURO BLOCK, 2 POSITION
- Stock
- 998
- In Stock ：
- 998
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- Headers, Plugs and Sockets
- Contact Mating Finish :
- Nickel
- Pitch :
- 0.197 5.00mm
- Packaging :
- Bulk
- Series :
- EB
- Type :
- Plug for Unshrouded Header
- Screw Size :
- M2.5
- Current - UL :
- 10A
- Voltage - UL :
- 300V
- RoHS Status :
- ROHS3 Compliant
- Operating Temperature :
- -40°C~105°C
- Number of Levels :
- 1
- Material Flammability Rating :
- UL94 V-0
- Feature :
- Interlocking (Side)
- Number of Positions :
- 2
- Housing Material :
- Polybutylene Terephthalate (PBT)
- Contact Material :
- Phosphor Bronze
- Wire Gauge or Range - AWG :
- 16-28 AWG
- Color :
- Black
- Torque - Screw :
- 0.4 Nm (3.5 Lb-In)
- Plug Wire Entry :
- 180°
- Termination Style :
- Screw - Rising Cage Clamp
- Wire Strip Length :
- 4.5-5mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Free Hanging (In-Line)
- Insulation Height :
- 0.433 11.00mm
- Factory Lead Time :
- 9 Weeks
- Datasheets
- EBJA-02-C-BK
Bulk 0.197 5.00mm Black 1 Levels Free Hanging (In-Line) Plug for Unshrouded Header EB Polybutylene Terephthalate (PBT) Nickel Phosphor Bronze
EBJA-02-C-BK Overview
Free Hanging (In-Line) is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the EB Series.It is more powerful in many ways due to its Interlocking (Side) feature.It operates at an operating temperature of -40°C~105°C.Compared to other Plug for Unshrouded Header products, this part has a lot of benefits to offer.
EBJA-02-C-BK Features
EB series
EBJA-02-C-BK Applications
There are a lot of Adam Tech
EBJA-02-C-BK Terminal Blocks applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
