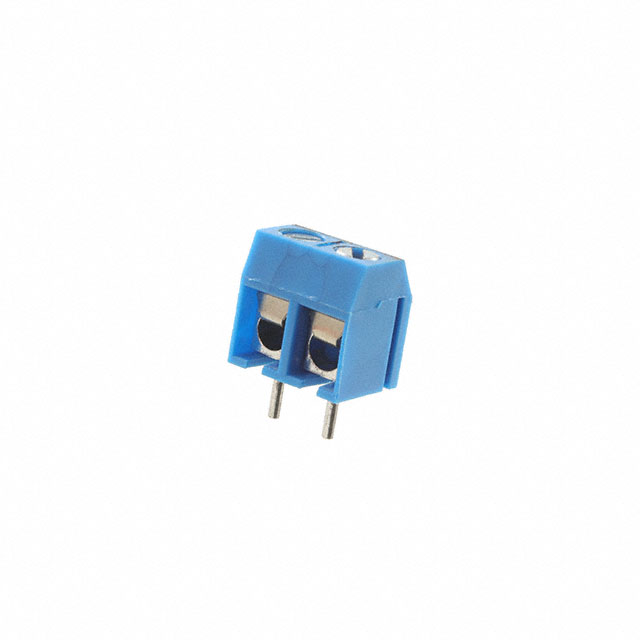

EBBA-02-C-SS-BU
Or copy the link below:
- Mfr.Part #
- EBBA-02-C-SS-BU
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- EURO BLOCK, 2 POSITION
- Stock
- 2,751
- In Stock ：
- 2,751
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- Wire to Board
- Operating Temperature :
- -40°C~105°C
- Factory Lead Time :
- 9 Weeks
- Mating Orientation :
- Horizontal with Board
- Positions Per Level :
- 2
- Clamp Material - Plating :
- Phosphor Bronze - Nickel Plated
- Packaging :
- Bulk
- Screw Material - Plating :
- Steel - Zinc Plated
- Wire Gauge :
- 14-22 AWG
- Housing Material :
- Polybutylene Terephthalate (PBT)
- Contact Material :
- Brass
- Number of Levels :
- 1
- Current :
- 16A
- Voltage :
- 250V
- Color :
- Blue
- Pitch :
- 0.197 5.00mm
- Feature :
- Interlocking (Side)
- Mounting Type :
- Through Hole
- Contact Material - Plating :
- Brass - Tin Plated
- Screw Thread :
- M2.5
- Series :
- EB
- RoHS Status :
- ROHS3 Compliant
- Torque - Screw :
- 0.4 Nm (3.5 Lb-In)
- Wire Termination :
- Screw - Leaf Spring, Wire Guard
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Length :
- 10mm
- Datasheets
- EBBA-02-C-SS-BU
EBBA-02-C-SS-BU Documents
0.197 5.00mm Blue Bulk Polybutylene Terephthalate (PBT) Through Hole Horizontal with Board Screw - Leaf Spring, Wire Guard 1 Levels 14-22 AWG EB
EBBA-02-C-SS-BU Overview
Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the EB Series.In many ways, Interlocking (Side) makes it more powerful.Operating temperature is set to -40°C~105°C.
EBBA-02-C-SS-BU Features
EB series
EBBA-02-C-SS-BU Applications
There are a lot of Adam Tech
EBBA-02-C-SS-BU Terminal Blocks applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
