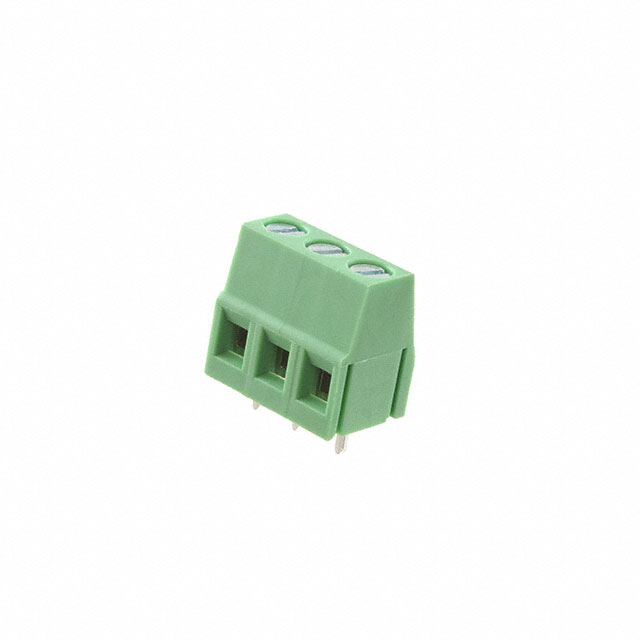

EBAG-03-C
Or copy the link below:
- Mfr.Part #
- EBAG-03-C
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- EURO BLOCK 3P
- Stock
- 355
- In Stock ：
- 355
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- Wire to Board
- Number of Levels :
- 1
- Torque - Screw :
- 0.4 Nm (3.5 Lb-In)
- Mating Orientation :
- Horizontal with Board
- Packaging :
- Bulk
- Wire Termination :
- Screw - Rising Cage Clamp
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Series :
- EB
- Orientation :
- RIGHT ANGLE
- Length :
- 4.75mm
- Contact Plating :
- Nickel
- Feature :
- Interlocking (Side)
- Clamp Material - Plating :
- Brass - Nickel Plated
- Positions Per Level :
- 3
- Factory Lead Time :
- 9 Weeks
- Voltage :
- 300V
- Screw Thread :
- M2.5
- Current :
- 16A
- Operating Temperature :
- -40°C~105°C
- Mounting Type :
- Through Hole
- Screw Material - Plating :
- Steel - Zinc Plated
- RoHS Status :
- ROHS3 Compliant
- Color :
- Green
- Flammability Rating :
- UL94 V-0
- Pitch :
- 0.197 5.00mm
- Contact Material :
- Bronze
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Contact Material - Plating :
- Brass - Tin Plated
- Wire Gauge :
- 12-22 AWG
- Datasheets
- EBAG-03-C
EBAG-03-C Documents
0.197 5.00mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 12-22 AWG EB
EBAG-03-C Overview
Through Hole is the mounting type for the device.The product is packaged in a Bulk case.It's part of the EB Series.Many aspects of its Interlocking (Side) feature increase its effectiveness.It runs at -40°C~105°C Operating Temperature.
EBAG-03-C Features
EB series
EBAG-03-C Applications
There are a lot of Adam Tech
EBAG-03-C Terminal Blocks applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
