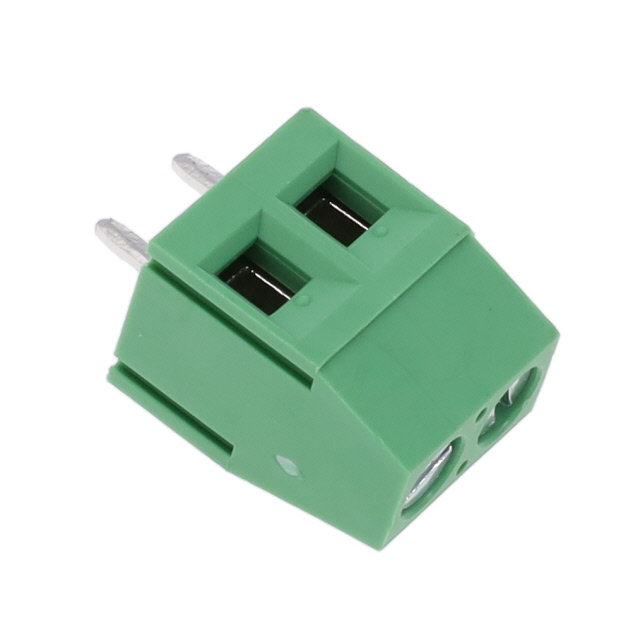

EBAFA-02-D

Manufacturer :

Adam Tech

Product Category :

Wire to Board

Housing Material :

Polyamide (PA66), Nylon 6/6

Clamp Material - Plating :

-

Color :

Green

Current :

16 A

Package :

Box

Mating Orientation :

Horizontal with Board

Screw Material - Plating :

-

Mounting Type :

Through Hole

Torque - Screw :

0.4 Nm (3.5 Lb-In)

Base Product Number :

EBAFA

Product Status :

Active

Number of Levels :

1

Wire Gauge :

12-22 AWG

Screw Thread :

M2.5

Contact Material - Plating :

Tin

Operating Temperature :

-40°C ~ 105°C

Wire Termination :

Screw - Rising Cage Clamp

Series :

EB

Pitch :

0.200 (5.08mm)

Voltage :

300 V

Features :

Interlocking (Side)

Positions Per Level :

2
