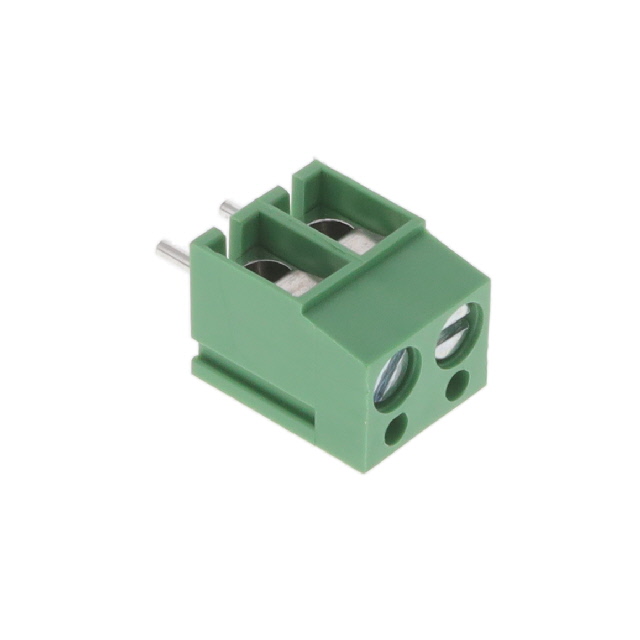

EBAA-02-C

Manufacturer :

Adam Tech

Product Category :

Wire to Board

Pitch :

0.197 (5.00mm)

Mating Orientation :

Horizontal with Board

Clamp Material - Plating :

-

Torque - Screw :

0.5 Nm (4.4 Lb-In)

Product Status :

Active

Series :

EB

Current :

16 A

Housing Material :

Polyamide (PA66), Nylon 6/6

Screw Thread :

M3

Positions Per Level :

2

Wire Termination :

Screw - Leaf Spring, Wire Guard

Package :

Box

Base Product Number :

EBAA

Contact Material - Plating :

Tin

Number of Levels :

1

RoHS :

Non-Compliant

Operating Temperature :

-30°C ~ 120°C

Wire Gauge :

14-22 AWG

Color :

Green

Voltage :

250 V

Features :

Interlocking (Side)

Screw Material - Plating :

Steel - Zinc Plated

Mounting Type :

Through Hole
