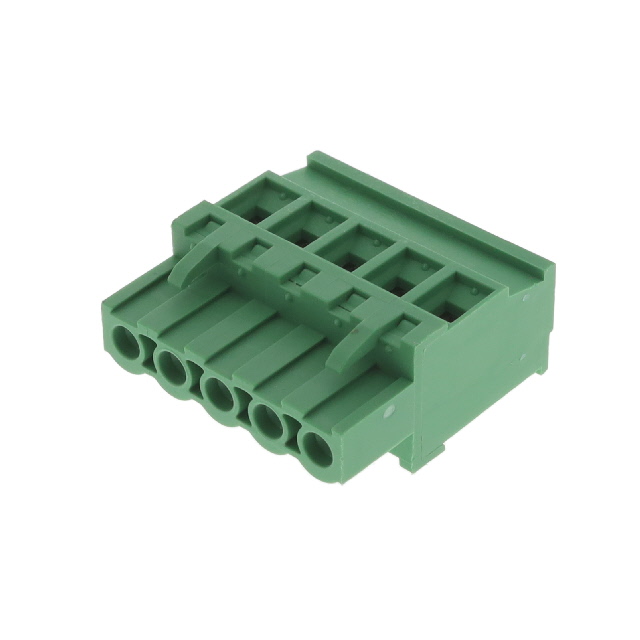

EB9A-05-D
Or copy the link below:
- Mfr.Part #
- EB9A-05-D
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- EURO BLOCK 5P
- Stock
- 293
- In Stock ：
- 293
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- Headers, Plugs and Sockets
- Mounting Type :
- Free Hanging (In-Line)
- Number of Positions :
- 5
- Packaging :
- Bulk
- Pitch :
- 0.200 5.08mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Torque - Screw :
- 0.5 Nm (4.4 Lb-In)
- Type :
- Plug, Female Sockets
- Feature :
- Retention Latches (Wire Side)
- Contact Material :
- Brass
- Wire Gauge or Range - mm² :
- 2.5mm2
- Series :
- EB
- Factory Lead Time :
- 9 Weeks
- Operating Temperature :
- -40°C~105°C
- Insulation Height :
- 1.024 26.01mm
- Voltage - UL :
- 300V
- Current - UL :
- 15A
- Plug Wire Entry :
- 90°
- Number of Levels :
- 1
- Termination Style :
- Screw - Leaf Spring, Wire Guard
- Material Flammability Rating :
- UL94 V-0
- Wire Gauge or Range - AWG :
- 14-28 AWG
- Screw Size :
- M3
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Contact Mating Finish :
- Nickel
- RoHS Status :
- ROHS3 Compliant
- Color :
- Green
- Wire Strip Length :
- 7-8mm
- Datasheets
- EB9A-05-D
Bulk 0.200 5.08mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets EB Polyamide (PA66), Nylon 6/6 Nickel Brass
EB9A-05-D Overview
Free Hanging (In-Line) is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the EB Series.It is more powerful in many ways due to its Retention Latches (Wire Side) feature.It operates at an operating temperature of -40°C~105°C.Compared to other Plug, Female Sockets products, this part has a lot of benefits to offer.
EB9A-05-D Features
EB series
EB9A-05-D Applications
There are a lot of Adam Tech
EB9A-05-D Terminal Blocks applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
