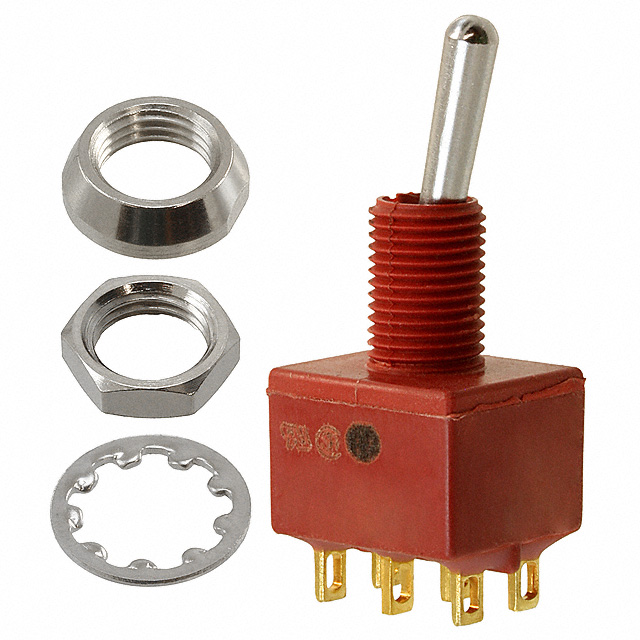

E201SYZQE
Or copy the link below:
- Mfr.Part #
- E201SYZQE
- Manufacturer
- C&K
- Package / Case
- 125
- Datasheet
- Download
- Description
- SWITCH TOGGLE DPDT 7.5A 125V
- Stock
- 17
- In Stock ：
- 17
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- C&K
- Product Category :
- RoHS Status :
- ROHS3 Compliant
- Depth :
- 11.43mm
- Mounting Type :
- Panel Mount
- Actuator Length :
- 10.16mm
- Contact Material :
- Silver
- Max Current Rating :
- 7.5A
- Current Rating :
- 7.5A
- Operating Temperature :
- -30°C~85°C
- Length :
- 12.7mm
- Packaging :
- Tray
- Current Rating (Amps) :
- 7.5A AC/DC
- Radiation Hardening :
- No
- Illumination Type :
- Illuminated, Non-Illuminated
- Ratings :
- IP57, Waterproof
- Bushing Thread :
- 1/4-40
- Ingress Protection :
- IP57 - Dust Protected, Waterproof
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Series :
- E
- Termination :
- Solder
- Termination Style :
- Solder Lug
- Max Voltage Rating (DC) :
- 28V
- Actuator Material :
- Brass, Chrome Plated
- Actuator Type :
- Standard Round
- Contact Resistance :
- 10MOhm
- Published :
- 2014
- Circuit :
- DPDT
- Electrical Life :
- 40,000 Cycles
- Illumination :
- Non-Illuminated
- Factory Lead Time :
- 16 Weeks
- Package / Case :
- 125
- Max Voltage Rating (AC) :
- 250V
- Panel Cutout Dimensions :
- Circular - 6.35mm Dia
- Voltage - Rated DC :
- 28V
- Feature :
- Epoxy Sealed Terminals
- Orientation :
- Straight
- Mount :
- Panel
- Contact Current Rating :
- 7.5A
- Voltage - Rated AC :
- 125V
- Switch Function :
- On-On
- Datasheets
- E201SYZQE
