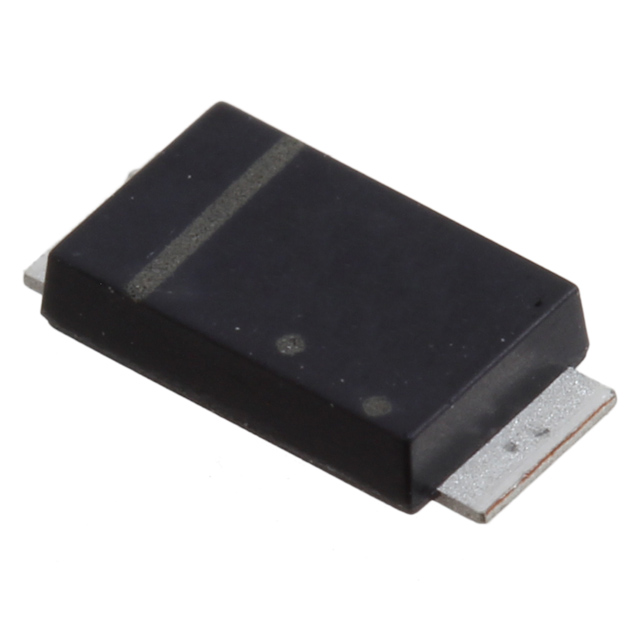

DZ2407500L

Manufacturer :

Panasonic

Product Category :

Diodes - Zener - Single

Voltage Tolerance :

5%

Tolerance :

±5%

Number of Terminations :

2

Published :

2010

Max Operating Temperature :

85°C

Mounting Type :

Surface Mount

ECCN Code :

EAR99

Current - Reverse Leakage @ Vr :

10μA @ 30V

Voltage - Forward (Vf) (Max) @ If :

1.2V @ 200mA

Zener Voltage :

7.5V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Terminal Form :

Flat

Zener Current :

10mA

Working Voltage :

7.5V

Factory Lead Time :

10 Weeks

Width :

2.4mm

Base Part Number :

DZ2407V5

Diode Type :

ZENER DIODE

REACH SVHC :

Unknown

Impedance-Max :

30Ohm

Lead Free :

Lead Free

Length :

3.8mm

Max Reverse Leakage Current :

10μA

Package / Case :

SOD-128

Pin Count :

2

HTS Code :

8541.10.00.50

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Packaging :

Tape and Reel (TR)

Height :

820μm

Number of Pins :

2

Forward Voltage :

1.2V

Reference Voltage :

7.5V

Voltage Tol-Max :

5%

Test Current :

10mA

Polarity :

Unidirectional

Diode Element Material :

SILICON

Peak Reverse Current :

10μA

Element Configuration :

Single

Impedance :

30Ohm

RoHS Status :

RoHS Compliant

Mount :

Surface Mount

Max Power Dissipation :

2W

Terminal Position :

Dual

Power Dissipation :

2W

Number of Elements :

1
