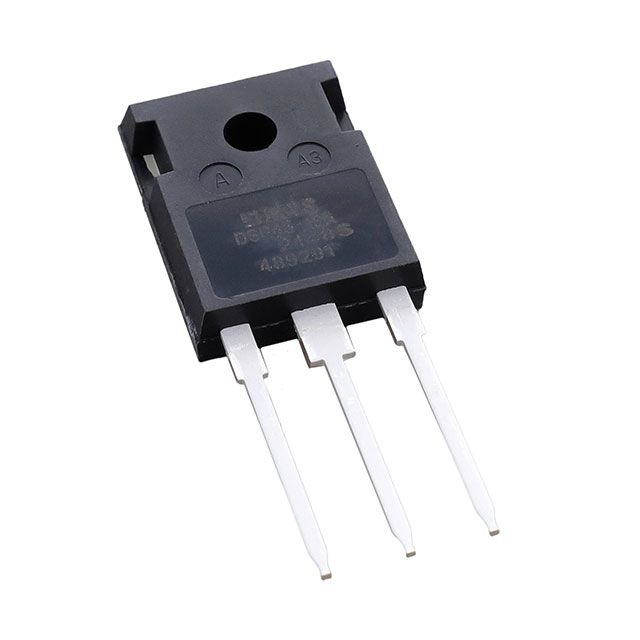

DSP45-18A

Manufacturer :

Littelfuse

Product Category :

Diodes - Rectifiers - Single

Speed :

Standard Recovery >500ns, > 200mA (Io)

Reverse Current-Max :

40μA

Surface Mount :

No

Product Type :

Rectifiers

Mounting Style :

Through Hole

Product :

Rectifiers

Voltage - Forward (Vf) (Max) @ If :

1.26V @ 45A

Maximum Operating Temperature :

+ 150 C

Additional Feature :

LOW LEAKAGE CURRENT, PD-CASE

Package :

Tube

RoHS :

Details

Current - Average Rectified (Io) :

45A

Configuration :

SERIES CONNECTED, CENTER TAP, 2 ELEMENTS

JEDEC-95 Code :

TO-247

HTS Code :

8541.10.00.80

Technology :

Standard

Reach Compliance Code :

Compliant

Case Connection :

ANODE AND CATHODE

Rep Pk Reverse Voltage-Max :

1800V

Mounting Type :

Through Hole

Number of Terminals :

3

Application :

GENERAL PURPOSE

Supplier Device Package :

TO-247 (IXTH)

Power Dissipation-Max :

270W

Subcategory :

Diodes and Rectifiers

Max Surge Current :

480 A

Number of Terminations :

3

Output Current-Max :

45A

Packaging :

Tube

Recovery Time :

-

Operating Temperature - Junction :

-40°C~175°C

JESD-30 Code :

R-PSFM-T3

Number of Phases :

1

Voltage - DC Reverse (Vr) (Max) :

1800V

Brand :

IXYS

ECCN Code :

EAR99

Number of Elements :

2

Series :

-

Factory Lead Time :

20 Weeks

Type :

Standard Recovery Rectifiers

Terminal Form :

THROUGH-HOLE

Vf - Forward Voltage :

1.26 V

Package Shape :

RECTANGULAR

Diode Type :

Standard

Base Product Number :

DSP45

Operating Temperature (Max) :

175°C

Product Status :

Active

Reference Standard :

IEC-60747

Non-rep Pk Forward Current-Max :

440A

Minimum Operating Temperature :

- 40 C

Capacitance @ Vr, F :

18pF @ 400V 1MHz

Terminal Position :

Single

Product Category :

Rectifiers

Manufacturer :

IXYS

Diode Element Material :

SILICON

Package / Case :

TO-247-3

Current - Reverse Leakage @ Vr :

40μA @ 1800V
