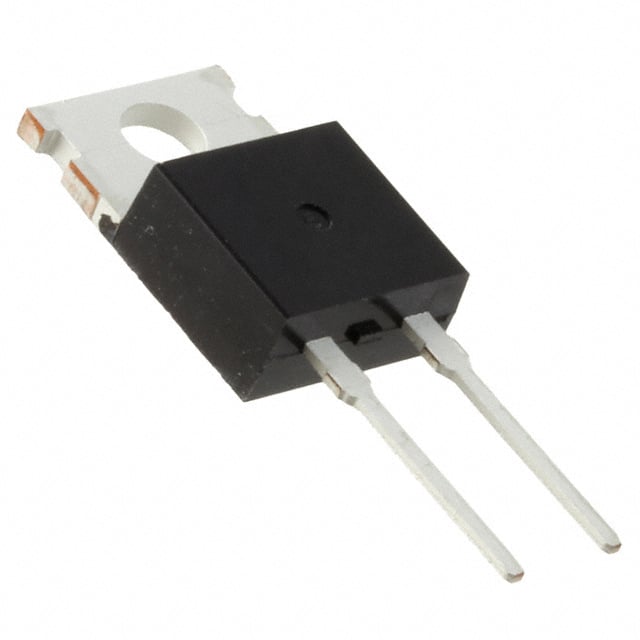

DSEP29-03A

Manufacturer :

Littelfuse

Product Category :

Diodes - Rectifiers - Single

Terminal Position :

Single

Qualification Status :

Not Qualified

Current - Reverse Leakage @ Vr :

10µA @ 300V

JESD-609 Code :

e3

Time@Peak Reflow Temperature-Max (s) :

35

Case Connection :

CATHODE

Element Configuration :

Single

Diode Type :

Standard

Product Status :

Obsolete

Peak Non-Repetitive Surge Current :

300A

Non-rep Pk Forward Current-Max :

300 A

Min Operating Temperature :

-55°C

Average Rectified Current :

30A

Surface Mount :

No

Diode Element Material :

SILICON

Terminal Form :

THROUGH-HOLE

Power Dissipation-Max :

170W

Series :

HiPerFRED™

Reverse Recovery Time :

30 ns

Voltage - Forward (Vf) (Max) @ If :

1.26V @ 30A

Number of Terminals :

2

Package Shape :

RECTANGULAR

Max Forward Surge Current (Ifsm) :

300A

Number of Pins :

2

Packaging :

Tube

Published :

2005

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Mount :

Through Hole

Reverse Recovery Time (trr) :

30ns

Mounting Type :

Through Hole

Peak Reflow Temperature (Cel) :

260

Current - Average Rectified (Io) :

30A

Forward Current :

30A

Recovery Time :

30 ns

Reverse Voltage :

300V

Voltage - DC Reverse (Vr) (Max) :

300V

Supplier Device Package :

TO-220AC

Rep Pk Reverse Voltage-Max :

300 V

Additional Feature :

SNUBBER DIODE, FREE WHEELING DIODE

Package :

Tube

JEDEC-95 Code :

TO-220AC

Configuration :

Single

Max Repetitive Reverse Voltage (Vrrm) :

300V

Application :

GENERAL PURPOSE

Reverse Recovery Time-Max :

0.03 μs

Number of Terminations :

2

Package / Case :

TO-220-2

Peak Reverse Current :

250μA

JESD-30 Code :

R-PSFM-T2

RoHS Status :

RoHS Compliant

Base Product Number :

DSEP29

Termination :

Through Hole

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pin Count :

3

Max Reverse Voltage (DC) :

300V

Output Current-Max :

30 A

Forward Voltage :

930mV

ECCN Code :

EAR99

HTS Code :

8541.10.00.80

Operating Temperature - Junction :

-55°C~175°C

Number of Phases :

1

Max Surge Current :

300A

REACH SVHC :

No SVHC

Max Operating Temperature :

175°C

Number of Elements :

1

Reach Compliance Code :

not_compliant

Capacitance @ Vr, F :

--

Terminal Finish :

Matte Tin (Sn)

Manufacturer :

IXYS Corporation
