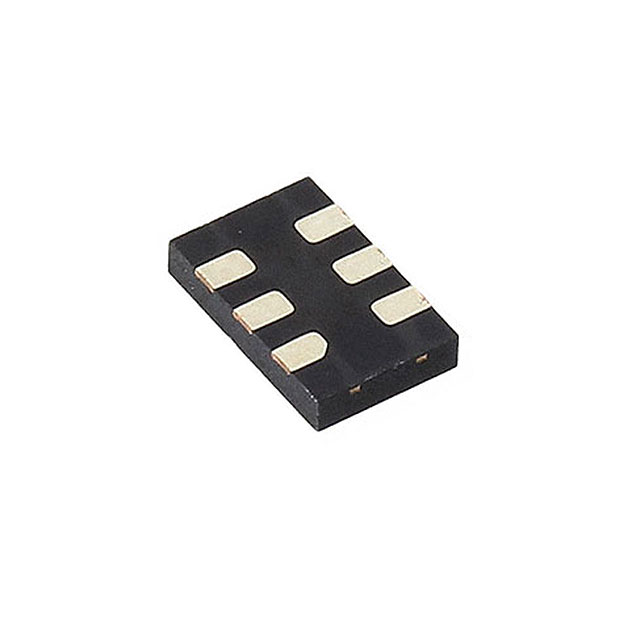

DSC8123BI2

Manufacturer :

Microchip Technology

Product Category :

Programmable Oscillators

Min Operating Temperature :

-40 °C

Factory Lead Time :

12 Weeks

Type :

XO (Standard)

Function :

Enable/Disable

Mount :

Surface Mount

Spread Spectrum Bandwidth :

--

Max Operating Temperature :

85 °C

Mounting Type :

Surface Mount

Product Type :

Programmable Oscillators

Fall Time-Max :

0.2ns

Programmable Type :

Blank (User Must Program)

Brand :

Microchip Technology / Atmel

Min Supply Voltage :

2.25 V

Rise Time-Max :

0.2ns

Frequency :

460MHz

Subcategory :

Oscillators

Package / Case :

6-SMD, No Lead

Width :

3.2004 mm

Ratings :

AEC-Q100

RoHS Status :

ROHS3 Compliant

Max Supply Voltage :

3.6 V

Operating Temperature :

-40°C~85°C

Current - Supply (Max) :

32mA

Max Supply Current :

32mA

Maximum Operating Temperature :

+ 85 C

Length :

5.0038 mm

Minimum Operating Temperature :

- 40 C

Size / Dimension :

0.197Lx0.126W 5.00mmx3.20mm

Voltage - Supply :

2.25V~3.6V

Max Duty Cycle :

52 %

Base Resonator :

MEMS

Output :

LVDS

Available Frequency Range :

10MHz~460MHz

Mounting Style :

SMD/SMT

Height Seated (Max) :

0.035 0.90mm

Output Format :

LVDS

Height - Seated (Max) :

0.035 (0.90mm)

Product Category :

Programmable Oscillators

Manufacturer :

Microchip

Termination Style :

Solder Pad

Height :

889μm

Package :

Tube

Packaging :

Tube

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Base Product Number :

DSC8123

Published :

2013

Termination :

Solder

Series :

DSC8123

Physical Dimension :

5.0mm x 3.2mm x 0.85mm

Product Status :

Active

RoHS :

Compliant

Frequency Stability :

±25ppm

Load Capacitance :

2pF

Product :

MEMS Oscillators

Symmetry-Max :

52/48%
